TPS38800

ACTIVE

Multichannel overvoltage and undervoltage I²C programmable voltage supervisor

Texas Instruments TPS38800 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

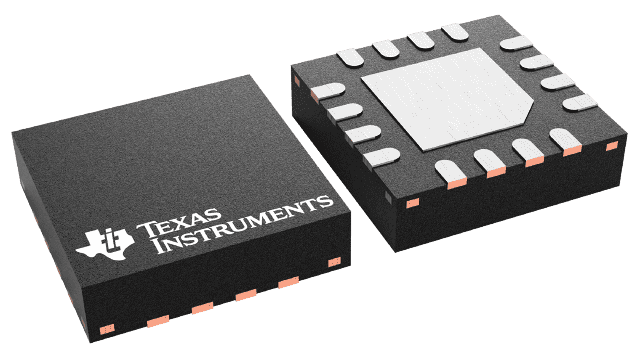

WQFN (RTE)-16-9 mm² 3 x 3

Features

  • Monitor state-of-the art SOCs
    • ± 6mV threshold accuracy (–40°C to +125°C)
    • Input voltage range: 2.5V to 5.5V
    • Undervoltage lockout (UVLO): 2.48V
    • Low quiescent current (maximum): 200µA in idle mode
    • Configuration of 2 to 8 channels available
    • Fixed window threshold levels
      • 5mV steps from 0.2V to 1.475V
      • 20mV steps from 0.8V to 5.5V
  • Miniature package and minimal component cost
    • 3mm x 3mm QFN package
    • User adjustable glitch immunity via I2C
    • User adjustable voltage threshold levels via I2C
  • Designed for safety applications
    • Active-low open-drain NIRQ output (Latched)
    • Active-low open-drain NRST output (Reset Delay)
    • Cyclic Redundancy Checking (CRC)
    • Packet Error Checking (PEC)
  • Monitor state-of-the art SOCs
    • ± 6mV threshold accuracy (–40°C to +125°C)
    • Input voltage range: 2.5V to 5.5V
    • Undervoltage lockout (UVLO): 2.48V
    • Low quiescent current (maximum): 200µA in idle mode
    • Configuration of 2 to 8 channels available
    • Fixed window threshold levels
      • 5mV steps from 0.2V to 1.475V
      • 20mV steps from 0.8V to 5.5V
  • Miniature package and minimal component cost
    • 3mm x 3mm QFN package
    • User adjustable glitch immunity via I2C
    • User adjustable voltage threshold levels via I2C
  • Designed for safety applications
    • Active-low open-drain NIRQ output (Latched)
    • Active-low open-drain NRST output (Reset Delay)
    • Cyclic Redundancy Checking (CRC)
    • Packet Error Checking (PEC)

Description

The TPS38800/TPS388R0 device is a 2 to 8 channel window supervisor IC available in a 16-pin 3mm x 3mm QFN package. This high accuracy multichannel voltage supervisor is designed for systems that operate on low-voltage supply rails and have narrow margin supply tolerances.

I2C functionality gives flexibility in selecting thresholds, reset delays, glitch filters, and pin functionality. The internal glitch immunity and noise filters eliminate the need for external RC components to reduce false resets resulting from power transients. TPS38800/TPS388R0 does not require any external resistors for setting overvoltage and undervoltage reset thresholds, which further optimizes overall accuracy, cost, size, and improves reliability for safety systems.

The TPS38800/TPS388R0 device is a 2 to 8 channel window supervisor IC available in a 16-pin 3mm x 3mm QFN package. This high accuracy multichannel voltage supervisor is designed for systems that operate on low-voltage supply rails and have narrow margin supply tolerances.

I2C functionality gives flexibility in selecting thresholds, reset delays, glitch filters, and pin functionality. The internal glitch immunity and noise filters eliminate the need for external RC components to reduce false resets resulting from power transients. TPS38800/TPS388R0 does not require any external resistors for setting overvoltage and undervoltage reset thresholds, which further optimizes overall accuracy, cost, size, and improves reliability for safety systems.
