Texas Instruments TPS22997 Product Info

Parameters

Imax (A)	10
Vin (max) (V)	5.5
Vin (min) (V)	0.1
Number of channels	1
Features	Inrush current control, Power good signal, Quick output discharge, Thermal shutdown
Quiescent current (Iq) (typ) (µA)	10
Soft start	Adjustable Rise Time
Rating	Catalog
Ron (typ) (mΩ)	4
Shutdown current (ISD) (typ) (µA)	0.1
Current limit type	None
Function	Inrush current control, Power good signal, Thermal shutdown
Operating temperature range (°C)	-40 to 125
Device type	Load switch

Package

WQFN-HR (RYZ)-10-3 mm² 2 x 1.5

Features

Input operating voltage range (V_IN): 0.1 V–5.5 V
Bias voltage range:1.5 V–5.5 V
Maximum continuous current: 10 A
ON-Resistance (R_ON): 4 mΩ (typ.)
Adjustable slew rate control
Adjustable quick output discharge (QOD)
Open drain Power Good (PG) signal
Thermal shutdown
Low power consumption:
- ON state (I_Q): 10 µA (typ.)
- OFF state (I_SD): 0.1 µA (typ.)
Thermal shutdown
Smart ON pin pulldown (R_PD,ON)
- ON ≥ V_IH (I_ON): 25 nA (typ.)
- ON ≤ V_IL (R_PD,ON): 500 kΩ (typ.)

Input operating voltage range (V_IN): 0.1 V–5.5 V
Bias voltage range:1.5 V–5.5 V
Maximum continuous current: 10 A
ON-Resistance (R_ON): 4 mΩ (typ.)
Adjustable slew rate control
Adjustable quick output discharge (QOD)
Open drain Power Good (PG) signal
Thermal shutdown
Low power consumption:
- ON state (I_Q): 10 µA (typ.)
- OFF state (I_SD): 0.1 µA (typ.)
Thermal shutdown
Smart ON pin pulldown (R_PD,ON)
- ON ≥ V_IH (I_ON): 25 nA (typ.)
- ON ≤ V_IL (R_PD,ON): 500 kΩ (typ.)

Description

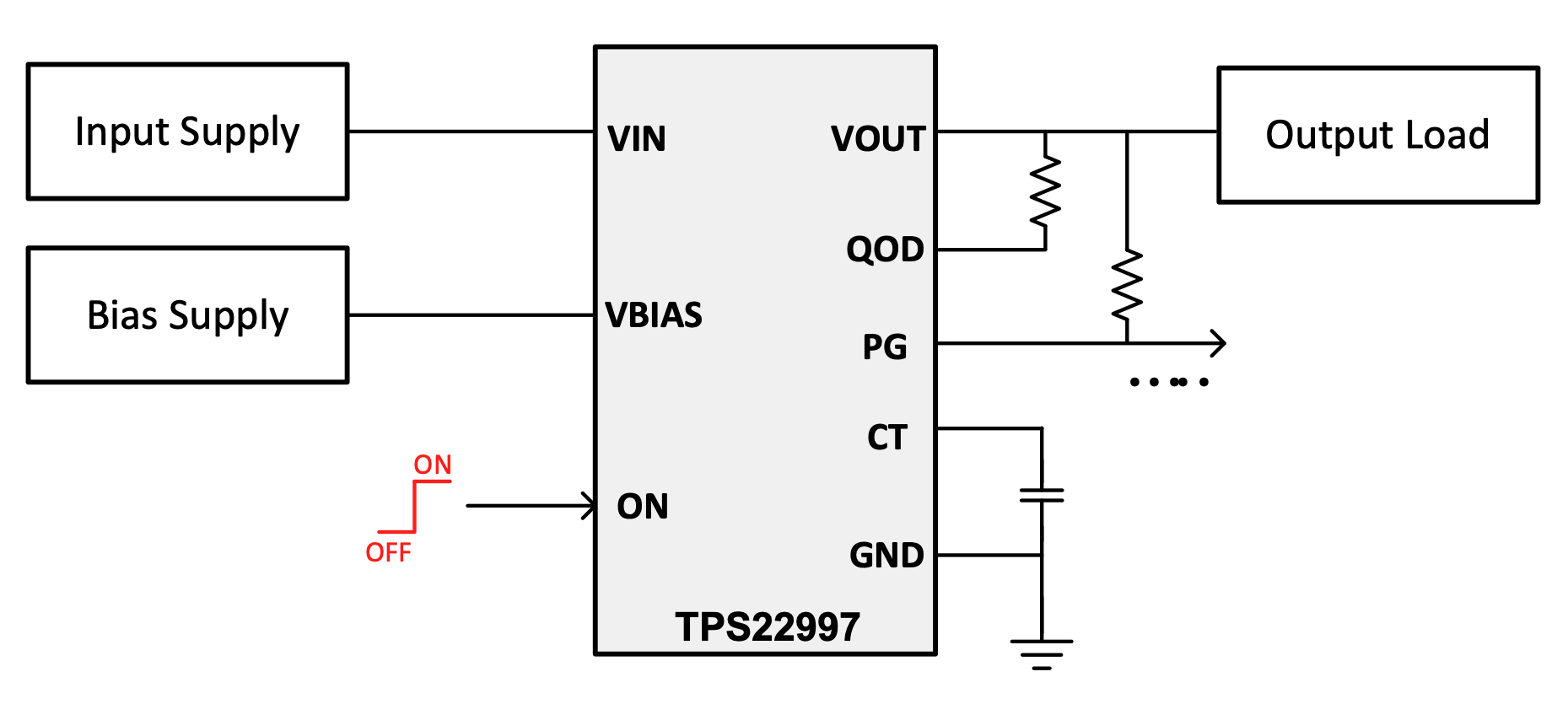

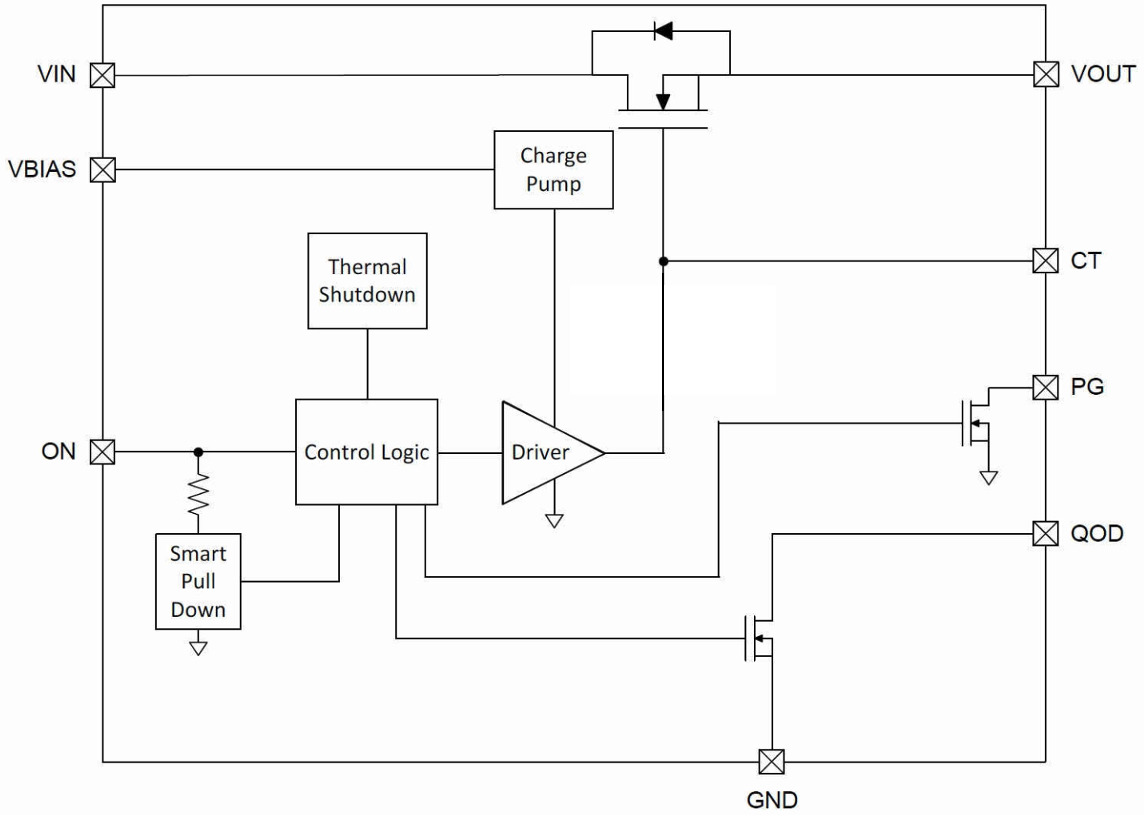

The TPS22997 is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.1 V to 5.5 V and can support a maximum continuous current of 10 A.

The switch is controlled by an enable pin (ON), which is capable of interfacing directly with low voltage GPIO signals (V_IH = 0.8 V). The TPS22997 device has an optional QOD pin for quick output discharge when switch is turned off, and the fall time (t_FALL) of the output can be adjusted through an external resistor. There is a Power Good (PG) signal on the device that indicates when the main MOSFET is fully turned on, which can be used to enable a downstream load. Integrated thermal shutdown ensures protection in high temperature environments.

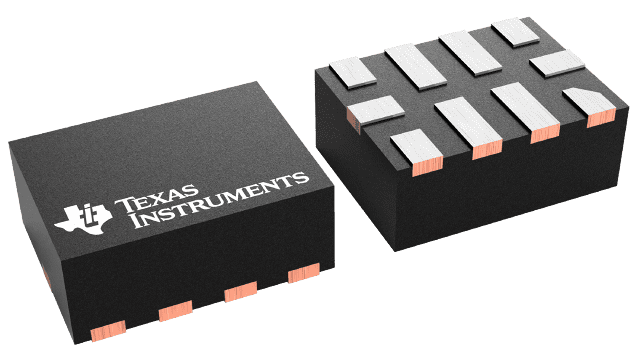

The TPS22997 is available in a 1.5 × 2.0 mm, 0.5 mm pitch, 10-pin WQFN package (RYZ) and is characterized for operation over the free-air temperature range of –40°C to +125°C.

The TPS22997 is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.1 V to 5.5 V and can support a maximum continuous current of 10 A.

The switch is controlled by an enable pin (ON), which is capable of interfacing directly with low voltage GPIO signals (V_IH = 0.8 V). The TPS22997 device has an optional QOD pin for quick output discharge when switch is turned off, and the fall time (t_FALL) of the output can be adjusted through an external resistor. There is a Power Good (PG) signal on the device that indicates when the main MOSFET is fully turned on, which can be used to enable a downstream load. Integrated thermal shutdown ensures protection in high temperature environments.

The TPS22997 is available in a 1.5 × 2.0 mm, 0.5 mm pitch, 10-pin WQFN package (RYZ) and is characterized for operation over the free-air temperature range of –40°C to +125°C.
