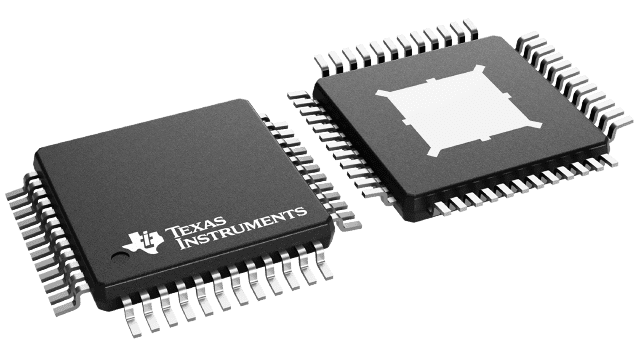

TPA3004D2
  • TPA3004D2

TPA3004D2

ACTIVE

12-W stereo, 8.5- to 18-V supply, analog input Class-D audio amplifier w/ volume control

Texas Instruments TPA3004D2 Product Info

1 April 2026 3

Parameters

Audio input type

Analog Input

Architecture

Class-D

Speaker channels (max)

Stereo

Control interface

Hardware

Power stage supply (max) (V)

18

Power stage supply (min) (V)

8.5

THD + N at 1 kHz (%)

0.2

Load (min) (Ω)

4

Analog supply voltage (min) (V)

8.5

Analog supply voltage (max) (V)

18

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

HTQFP (PHP)-48-81 mm² 9 x 9

Features

  • 12-W/Ch Into an 8- Load From 15-V Supply
  • Efficient, Class-D Operation Eliminates Heatsinks and Reduces Power Supply Requirements
  • 32-Step DC Volume Control From –40 dB to 36 dB
  • Line Outputs For External Headphone Amplifier With Volume Control
  • Regulated 5-V Supply Output for Powering TPA6110A2
  • Space-Saving, Thermally-Enhanced PowerPAD™ Packaging
  • Thermal and Short-Circuit Protection
  • APPLICATIONS
    • LCD Monitors and TVs
    • Powered Speakers
      • >

PowerPAD is a trademark of Texas Instruments.

  • 12-W/Ch Into an 8- Load From 15-V Supply
  • Efficient, Class-D Operation Eliminates Heatsinks and Reduces Power Supply Requirements
  • 32-Step DC Volume Control From –40 dB to 36 dB
  • Line Outputs For External Headphone Amplifier With Volume Control
  • Regulated 5-V Supply Output for Powering TPA6110A2
  • Space-Saving, Thermally-Enhanced PowerPAD™ Packaging
  • Thermal and Short-Circuit Protection
  • APPLICATIONS
    • LCD Monitors and TVs
    • Powered Speakers
      • >

PowerPAD is a trademark of Texas Instruments.

Description

The TPA3004D2 is a 12-W (per channel) efficient, Class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3004D2 can drive stereo speakers as low as 4 . The high efficiency of the TPA3004D2 eliminates the need for external heatsinks when playing music.

Stereo speaker volume is controlled with a dc voltage applied to the volume control terminal offering a range of gain from –40 dB to 36 dB. Line outputs, for driving external headphone amplifier inputs, are also dc voltage controlled with a range of gain from –56 dB to 20 dB.

An integrated 5-V regulated supply is provided for powering an external headphone amplifier.
