ACTIVE
Configuration |
1:1 SPST |
Number of channels |
4 |
Power supply voltage - single (V) |
5, 12, 16, 20, 36, 44 |
Power supply voltage - dual (V) |
+/-10, +/-15, +/-18, +/-22, +/-5 |
Protocols |
Analog |
Ron (typ) (Ω) |
1.7 |
CON (typ) (pF) |
144 |
ON-state leakage current (max) (µA) |
0.033 |
Supply current (typ) (µA) |
33 |
Bandwidth (MHz) |
48 |
Operating temperature range (°C) |
-40 to 125 |
Features |
1.8-V compatible control inputs, Break-before-make, Fail-safe logic |
Input/output continuous current (max) (A) |
0.37 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
22 |
Supply voltage (max) (V) |
44 |
Negative rail supply voltage (max) (V) |
-22 |
TSSOP (PW)-16-32 mm² 5 x 6.4

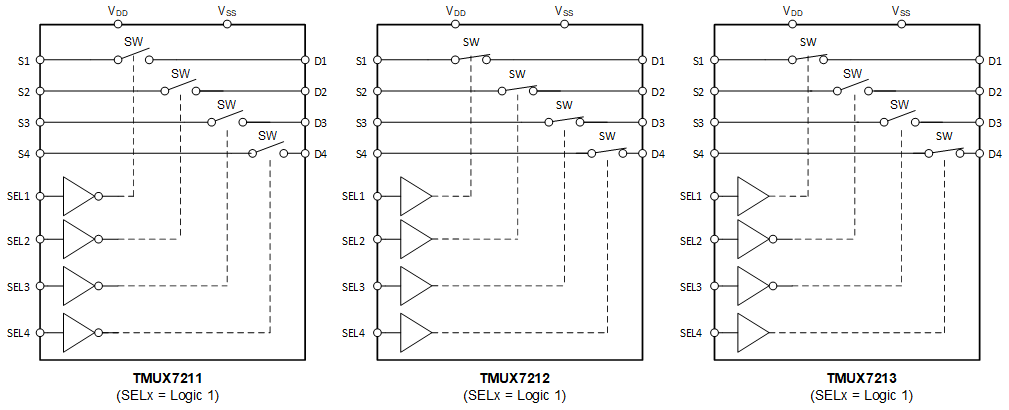

The TMUX7212 is a complementary metal-oxide semiconductor (CMOS) switch with four independently selectable 1:1, single-pole, single-throw (SPST) switch channels. This device works with a single supply (4.5V to 44V), dual supplies (±4.5V to ±22V), or asymmetric supplies (such as VDD = 12V, VSS = –5V). The TMUX721x supports bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from VSS to VDD.
The switches of the TMUX721x are controlled with appropriate logic control inputs on the SELx pins. The TMUX721x is part of the precision switches and multiplexers family of devices and has very low on and off leakage currents allowing them to be used in high precision measurement applications.
The TMUX721x provides latch-up immunity, preventing undesirable high current events between parasitic structures within the device typically caused by overvoltage events. A latch-up condition typically continues until the power supply rails are turned off and can lead to device failure. The latch-up immunity feature allows the TMUX721x to be used in harsh environments.
