ACTIVE
Configuration |
4:1 |
Number of channels |
2 |
Power supply voltage - single (V) |
5, 12, 16, 20, 36 |
Power supply voltage - dual (V) |
+/-10, +/-15, +/-18, +/-5 |
Protocols |
Analog |
Ron (typ) (Ω) |
4 |
CON (typ) (pF) |
115 |
ON-state leakage current (max) (µA) |
0.025 |
Supply current (typ) (µA) |
35 |
Bandwidth (MHz) |
52 |
Operating temperature range (°C) |
-40 to 125 |
Features |
1.8-V compatible control inputs, Break-before-make, Fail-safe logic |
Input/output continuous current (max) (A) |
0.4 |
Rating |
Catalog |
TSSOP (PW)-16-32 mm² 5 x 6.4

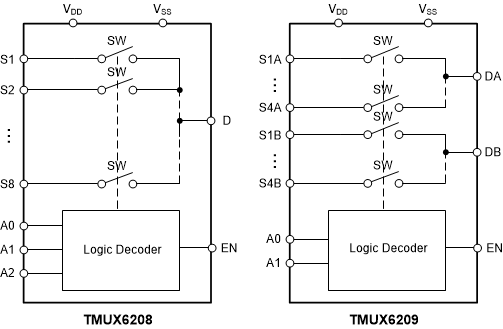

The TMUX6208 is a precision 8:1, single channel multiplexer while the TMUX6209 is a 4:1, 2 channel multiplexer featuring low on resistance and charge injection. The devices work with a single supply (4.5V to 36V), dual supply (±4.5V to ±18V), or asymmetric supply (such as VDD = 12V, VSS = –5V). The TMUX620x supports bidirectional analog and digital signals onthe source (Sx) and drain (D) pins ranging from VSS to VDD.
All logic control inputs support logic high levels from 1.8 V to VDD, ensuring both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.
The TMUX620x are part of the precision switches and multiplexers family of devices. These devices have very low on and off leakage currents and low charge injection, allowing them to be used in high precision measurement applications.
