• Key Features
  • High-Performance Multicore DSP (C6474)
  • Instruction Cycle Time: 0.83 ns (1.2-GHz Device); 1 ns (1-GHz Device); 1.18 ns (850-MHz Device)
  • Clock Rate: 1 GHz to 1.2 GHz (1.2-GHz Device); 1 GHz (1-GHz Device); 850 MHz (850-MHz Device)
  • Commercial Temperature and Extended Tmperature

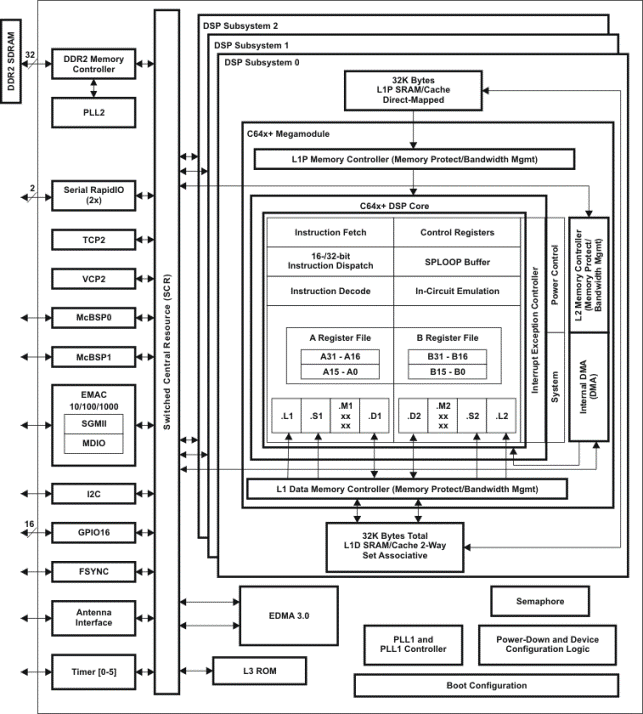

  • 3 TMS320C64x+™ DSP Cores; Six RSAs for CDMA Processing (2 per core)
  • Enhanced VCP2/TCP2
  • Frame Synchronization Interface
  • 16-/32-Bit DDR2-667 Memory Controller
  • EDMA3 Controller
  • Antenna Interface
  • Two 1x Serial RapidIO® Links, v1.2 Compliant
  • One 1.8-V Inter-Integrated Circuit (I2C) Bus
  • Two 1.8-V McBSPs
  • 1000 Mbps Ethernet MAC (EMAC)
  • Six 64-Bit General-Purpose Timers
  • 16 General-Purpose I/O (GPIO) Pins
  • Internal Semaphore Module non-UMTS Systems
  • System PLL and PLL Controller/DDR PLL and PLL Controller, Dedicated to DDR2 Memory Controller
• High-Performance Multicore DSP (C6474)
  • Instruction Cycle Time:
    • 1.2-GHz Device: 1.0-ns to 0.83-ns
    • 1-GHz Device: 1-ns
    • 850-MHz Device: 1.18 ns
  • Clock Rate:
    • 1.2-GHz Device: 1-GHz to 1.2-GHz
    • 1-GHz Device: 1-GHz
    • 850-MHz Device: 850 MHz
  • Eight 32-Bit Instructions/Cycle
  • Commercial Temperature:
    • 1.2-GHz Device: 0°C to 95°C
    • 1-GHz Device: 0°C to 100°C
    • 850-MHZ and 1-GHz Device: 0°C to 100°C
  • Extended Temperature:
    • 1.2-GHz Device: -40°C to 95°C⁽¹⁾
    • 1-GHz Device: -40°C to 100°C
• 3 TMS320C64x+™ DSP Cores
  • Dedicated SPLOOP Instructions
  • Compact Instructions (16-Bit)
  • Exception Handling
• TMS320C64x+ Megamodule L1/L2 Memory Architecture
  • 256 K-Bit (32 K-Byte) L1P Program Cache [Direct Mapped]
  • 256 K-Bit (32 K-Byte) L1D Data Cache [2-Way Set-Associative]
  • 512 K-Bit (64 K-Byte) L3 ROM
• Enhanced VCP2
  • Supports Over 694 7.95-Kbps AMR
• Enhanced Turbo Decoder Coprocessor (TCP2)
  • Supports up to Eight 2-Mbps 3 GPP (6 Iterations)
• Endianness: Little Endian, Big Endian
• Frame Synchronization Interface
  • Time Alignment Between Internal Subsystems, External Devices/System
  • OBSAI RP1 Compliant for Frame Burst Data
  • Alternate Interfaces for non-RP1 and non-UMTS Systems
• 16-/32-Bit DDR2-667 Memory Controller
• EDMA3 Controller (64 Independent Channels)
• Antenna Interface
  • 6 Configurable Links (Full Duplex)
  • Supports OBSAI RP3 Protocol, v1.0: 768-Mbps, 1.536-, 3.072-Gbps Link Rates
  • Supports CPRI Protocol V2.0:614.4-Mbps, 1.2288-, 2.4576-Gbps Link Rates
  • Clock Input Independent or Shared with CPU (Selectable at Boot-Time)
• Two 1x Serial RapidIO® Links, v1.2 Compliant
  • 1.25-, 2.5-, 3.125-Gbps Link Rates
  • Message Passing and DirectIO Support
  • Error Management Extensions and Congestion Control
• One 1.8-V Inter-Integrated Circuit (I2C) Bus
• Two 1.8-V McBSPs
• 1000 Mbps Ethernet MAC (EMAC)
  • IEEE 802.3 Compliant
  • Supports SGMII, v1.8 Compliant
  • 8 Independent Transmit (TX) and 8 Independent Receive (RX) Channels
• Six 64-Bit General-Purpose Timers
  • Configurable up to Twelve 32-Bit Timers
  • Configurable in a Watchdog Timer mode
• 16 General-Purpose I/O (GPIO) Pins
• Internal Semaphore Module
  • Software Method to Control Access to Shared Resources
  • 32 General Purpose Semaphore Resources
• System PLL and PLL Controller
• DDR PLL and PLL Controller, Dedicated to DDR2 Memory Controller
• IEEE-1149.1 and IEEE-1149.6 (JTAG™) Boundary-Scan-Compatible

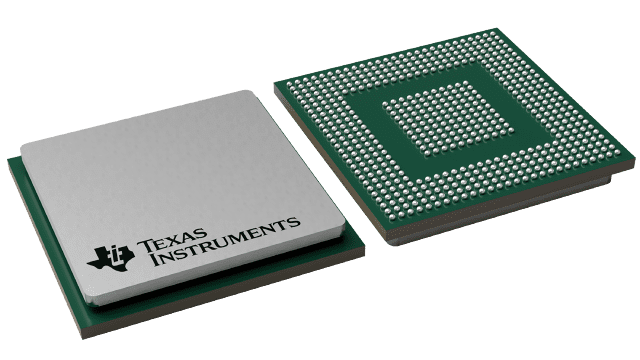

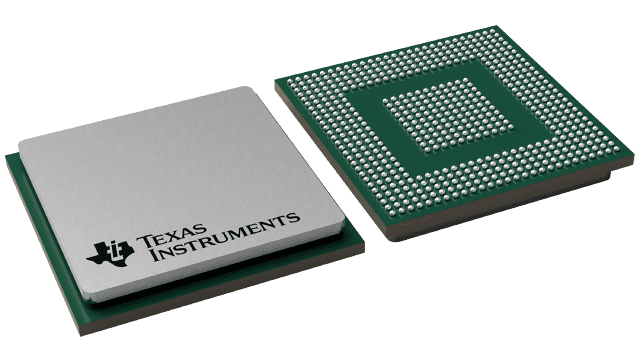

• 561-Pin Ball Grid Array (BGA) Packages (CUN, GUN, or ZUN Suffix), 0.8-mm Ball Pitch
• 0.065-µm/7-Level Cu Metal Process (CMOS)
• SmartReflex™ Class 0 Enabled - 0.9-V to 1.2-V Adaptive Core Voltage
• 1.8-V, 1.1-V I/Os

⁽¹⁾Note: Advance Information is presented in this document for the C6474 1.2-GHz extended temperature device.
