TMP64-Q1
  • TMP64-Q1
  • TMP64-Q1
  • TMP64-Q1

TMP64-Q1

ACTIVE

Automotive, 1%, 47-kΩ linear thermistor in 0402, 0603/0805 packages

Texas Instruments TMP64-Q1 Product Info

1 April 2026 3

Parameters

Resistance (25°C) (Ω)

47000

Resistance tolerance (%)

1

Operating temperature range (°C)

-40 to 150

Vin (min) (V)

5.5

Vin (max) (V)

5.5

Supply current (max) (µA)

0

Interface type

Resistance

Rating

Automotive

Package

SOT-5X3 (DYA)-2-1.28 mm² 1.6 x 0.8

Features

  • Automotive Qualifications
  • Temperature Options:
    • AEC-Q100 Grade 1: –40 °C to 125 °C
    • AEC-Q100 Grade 0 (DYA): –40 °C to 150 °C
  • Silicon-based thermistor with a positive temperature coefficient (PTC)
  • Linear resistance change across temperature
  • 47-kΩ nominal resistance at 25 °C (R25)
    • ±1% maximum (0 °C to 70 °C)
  • Consistent sensitivity across temperature
    • 6400 ppm/°C TCR (25 °C)
    • 0.2% typical TCR tolerance across temperature range
  • Fast thermal response time of 0.6 s (DEC)
  • Long lifetime and robust performance
    • Built-in fail-safe in case of short-circuit failures
    • 0.5% typical long term sensor drift
  • Automotive Qualifications
  • Temperature Options:
    • AEC-Q100 Grade 1: –40 °C to 125 °C
    • AEC-Q100 Grade 0 (DYA): –40 °C to 150 °C
  • Silicon-based thermistor with a positive temperature coefficient (PTC)
  • Linear resistance change across temperature
  • 47-kΩ nominal resistance at 25 °C (R25)
    • ±1% maximum (0 °C to 70 °C)
  • Consistent sensitivity across temperature
    • 6400 ppm/°C TCR (25 °C)
    • 0.2% typical TCR tolerance across temperature range
  • Fast thermal response time of 0.6 s (DEC)
  • Long lifetime and robust performance
    • Built-in fail-safe in case of short-circuit failures
    • 0.5% typical long term sensor drift

Description

Get started today with the Thermistor Design Tool, offering complete resistance vs temperature table (R-T table) computation, other helpful methods to derive temperature and example C-code.

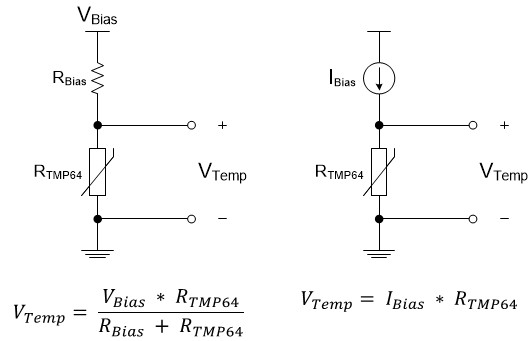

Linear thermistors offer linearity and consistent sensitivity across temperature to enable simple and accurate methods for temperature conversion. Low power consumption and a small thermal mass minimize the impact of self-heating. With built-in failsafe behavior at high temperatures and powerful immunity to environmental variation, these devices are designed for a long lifetime of high performance. The small size of the TMP6 series also allows for close placement to heat sources and quick response times.

Take advantage of benefits over NTC thermistors such as no extra linearization circuitry, minimized calibration, less resistance tolerance variation, larger sensitivity at high temperatures, and simplified conversion methods to save time and memory in the processor.

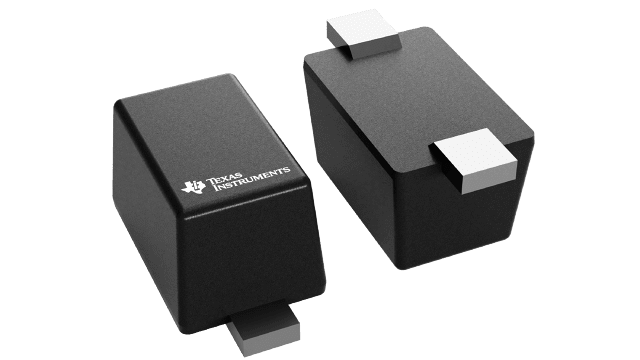

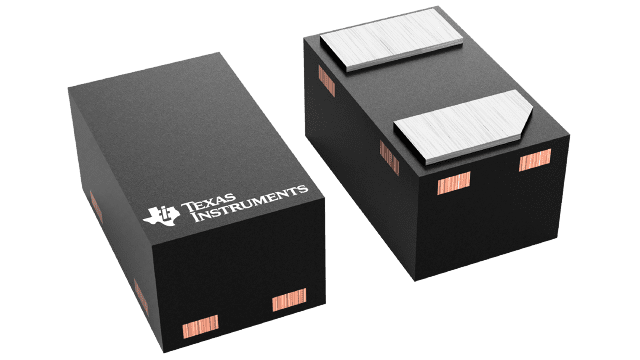

The TMP64-Q1 is currently available in a 0402 footprint-compatible X1SON package and a 0603 footprint-compatible SOT-5X3 package.
