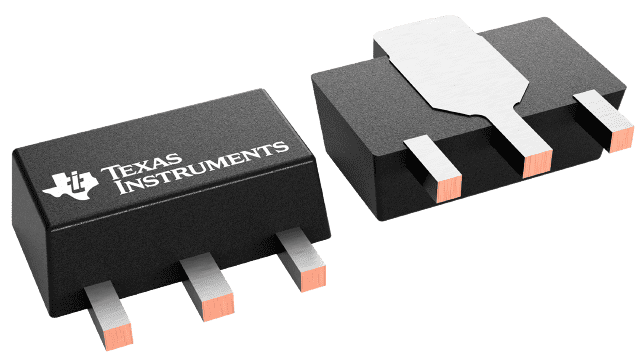

TLV709
  • TLV709
  • TLV709
  • TLV709
  • TLV709
  • TLV709

TLV709

ACTIVE

150-mA 30-V low-dropout (LDO) linear regulator with 3.2-μA supply current

Texas Instruments TLV709 Product Info

1 April 2026 6

Parameters

Rating

Catalog

Vin (max) (V)

30

Vin (min) (V)

2.5

Iout (max) (A)

0.15

Output options

Adjustable Output, Fixed Output

Vout (max) (V)

28

Vout (min) (V)

1.2

Fixed output options (V)

3.3, 5

Noise (µVrms)

425

PSRR at 100 KHz (dB)

60

Iq (typ) (mA)

0.003

Thermal resistance θJA (°C/W)

72, 132.7, 195

Accuracy (%)

2

Dropout voltage (Vdo) (typ) (mV)

400

Operating temperature range (°C)

-40 to 125

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Input voltage range: 2.5V to 30V
  • Available output voltage options:
    • Fixed: 1.2V to 5V
    • Adjustable: 1.2V to 28V
  • Output current: Up to 150mA
  • Very-low IQ: 3.2µA at 150mA load current
  • Stable with output capacitor ≥ 0.47µF
  • Overcurrent protection
  • Packages:
    • 3-pin SOT-23 (DBZ) (fixed configuration only, advance information)
    • 4-pin SOT-89 (PK) (fixed configuration only)
    • 5-pin SOT-23 (DBV) (both fixed and adjustable configurations)
  • Operating junction temperature: –40°C to +125°C
  • Input voltage range: 2.5V to 30V
  • Available output voltage options:
    • Fixed: 1.2V to 5V
    • Adjustable: 1.2V to 28V
  • Output current: Up to 150mA
  • Very-low IQ: 3.2µA at 150mA load current
  • Stable with output capacitor ≥ 0.47µF
  • Overcurrent protection
  • Packages:
    • 3-pin SOT-23 (DBZ) (fixed configuration only, advance information)
    • 4-pin SOT-89 (PK) (fixed configuration only)
    • 5-pin SOT-23 (DBV) (both fixed and adjustable configurations)
  • Operating junction temperature: –40°C to +125°C

Description

The TLV709 low-dropout (LDO) linear voltage regulator is a low quiescent current device. This device offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. The TLV709 is optimized to power microcontrollers and other low power loads for battery-powered applications.

The TLV709 LDO supports a low dropout of typically 600mV at 100mA of load current. The low quiescent current (3.2µA typically) does not vary across the entire range of output load current (0mA to 150mA). The TLV709 also features an internal soft-start to lower inrush current during start-up. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault condition.

The TLV709 is available in 2.9mm × 2.8mm, 5-pin SOT-23 (DBV), 2.92mm × 2.37mm, 3-pin SOT-23 (DBZ), and 4.5mm × 2.5mm, 3-pin SOT-89 (PK) packages, The DBV package is for fixed and adjustable outputs and the DBZ package is only for fixed outputs.
