TLV320DAC3203
  • TLV320DAC3203
  • TLV320DAC3203
  • TLV320DAC3203
  • TLV320DAC3203
  • TLV320DAC3203

TLV320DAC3203

ACTIVE

Stereo audio DAC with stereo 125-mW headphone driver & audio processing

Texas Instruments TLV320DAC3203 Product Info

1 April 2026 4

Parameters

Sampling rate (min) (kHz)

8

Sampling rate (max) (kHz)

192

THD+N (dB)

-84

Control interface

SPI

Architecture

Class-AB

Operating temperature range (°C)

-40 to 85

Rating

Catalog

THD + N at 1 kHz (%)

0.006

Package

DSBGA (YZK)-25-7.5625 mm² 2.75 x 2.75

Features

  • Stereo Audio DAC with 100dB SNR
  • 4.1mW Stereo 48ksps Playback
  • PowerTune™
  • Extensive Signal Processing Options
  • Stereo Headphone Outputs
  • Low Power Analog Bypass Mode
  • Programmable PLL
  • Integrated LDO
  • 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA Package
  • Stereo Audio DAC with 100dB SNR
  • 4.1mW Stereo 48ksps Playback
  • PowerTune™
  • Extensive Signal Processing Options
  • Stereo Headphone Outputs
  • Low Power Analog Bypass Mode
  • Programmable PLL
  • Integrated LDO
  • 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA Package

Description

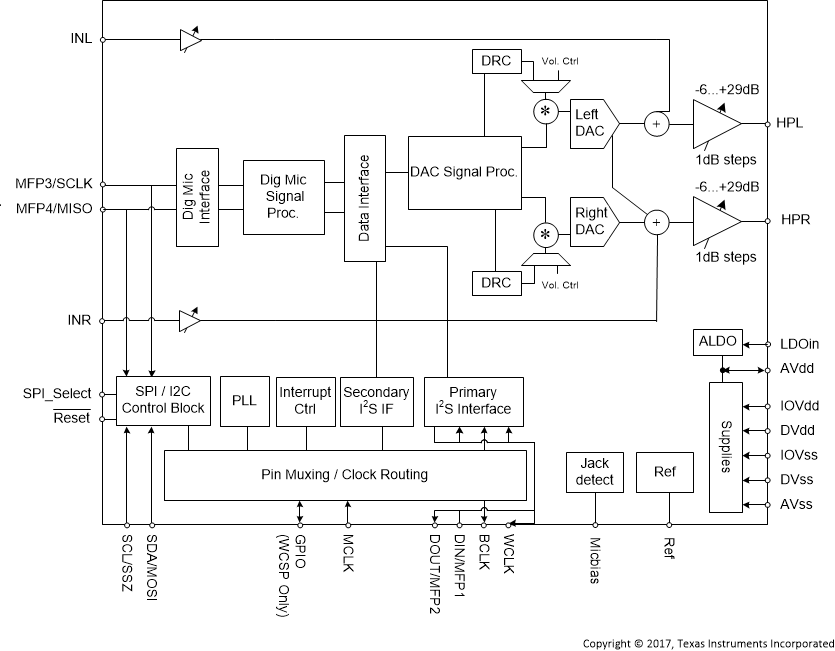

The TLV320DAC3203 (sometimes referred to as the DAC3203) is a flexible, low-power, low-voltage stereo audio codec with programmable outputs, PowerTune capabilities, fixed predefined and parameterizable signal processing blocks, integrated PLL, integrated LDO and flexible digital interfaces. Extensive register-based control of power, input/output channel configuration, gains, effects, pin-multiplexing and clocks is included, allowing the device to be precisely targeted to its application.

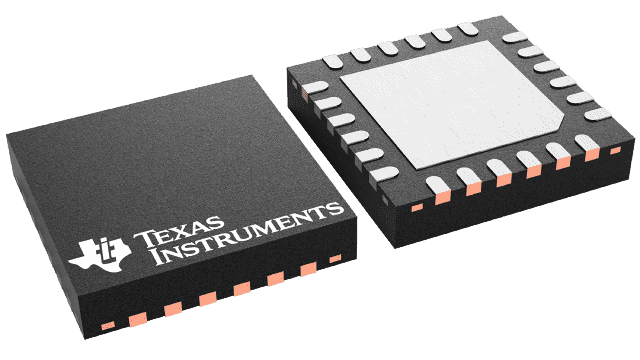

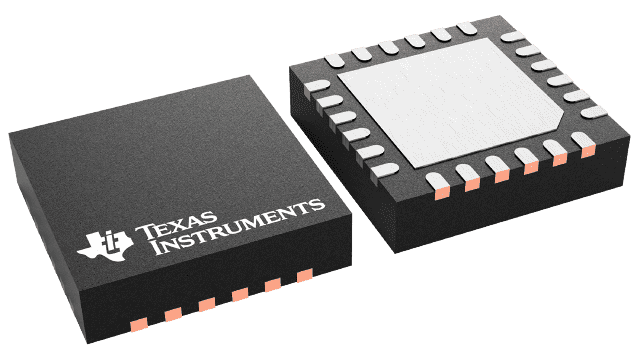

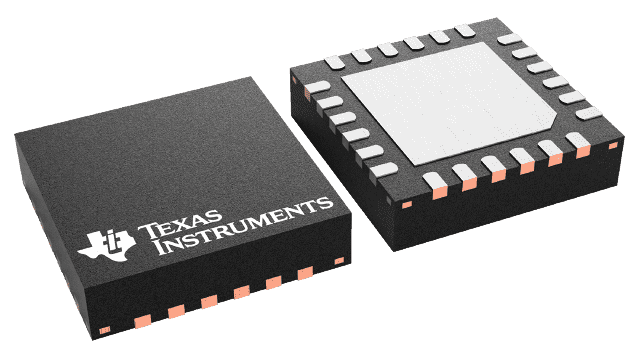

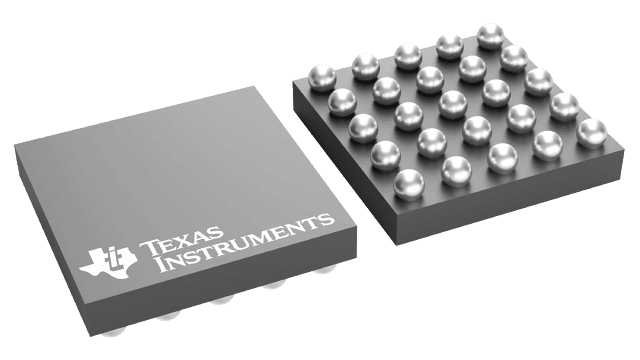

The device is available in the 4 mm × 4 mm VQFN and 2.7 mm × 2.7 mm DSGBA package.
