ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
16 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
3 |
Slew rate (typ) (V/µs) |
2.4 |
Vos (offset voltage at 25°C) (max) (mV) |
4.5 |
Iq per channel (typ) (mA) |
0.55 |
Vn at 1 kHz (typ) (nV√Hz) |
39 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
2 |
Input bias current (max) (pA) |
60 |
CMRR (typ) (dB) |
72 |
Iout (typ) (A) |
0.007 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.05 |
Output swing headroom (to positive supply) (typ) (V) |
-0.07 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

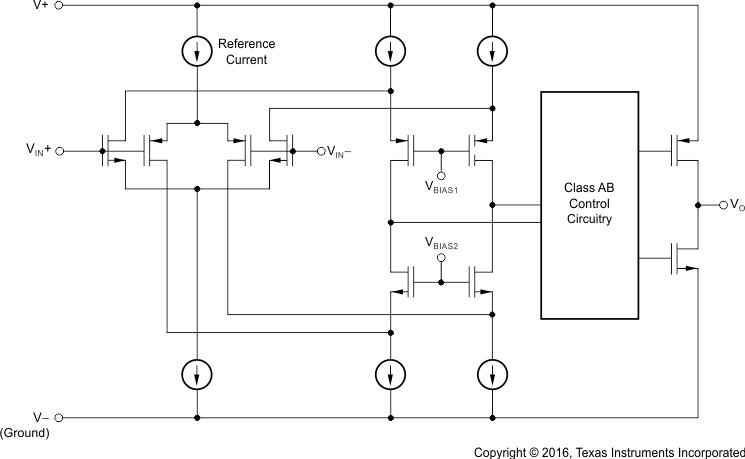

The TLV237x single-supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 µA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8-V supplies down to ±1.35 V) a variety of rechargeable cells.
The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLC227x in battery-powered applications. The rail-to-rail input stage further increases its versatility. The TLV237x is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance.
All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
The 2.7-V operation makes the TLV237x compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power microcontrollers available today including TI’s MSP430.
