Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Offset drift (typ) (µV/°C) |
0.5 |
Input bias current (max) (pA) |
110 |
GBW (typ) (MHz) |
0.012 |
Features |
Cost Optimized, EMI Hardened, Zero Crossover |
Slew rate (typ) (V/µs) |
0.005 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.0008 |
Vn at 1 kHz (typ) (nV√Hz) |
300 |
CMRR (typ) (dB) |
110 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.01 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |
SOIC (D)-8-29.4 mm² 4.9 x 6
The TLV369 family of single and dual operational amplifiers represents a cost-optimized generation of 1.8-V nanopower amplifiers.

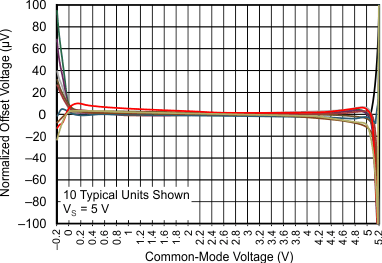

With the zero-crossover distortion circuitry, these amplifiers feature high linearity over the full common-mode input range with no crossover distortion, enabling true rail-to-rail input and operating from a 1.8-V to 5.5-V single supply. The family is also compatible with industry-standard nominal voltages of 3.0 V, 3.3 V, and 5.0 V.
The TLV369 (single version) is offered in a 5-pin SC70 package. The TLV2369 (dual version) comes in 8-pin VSSOP and SOIC packages.
