0
ACTIVE
Number of channels |
1 |
Output type |
Open-drain |
Propagation delay time (µs) |
0.065 |
Vs (max) (V) |
40 |
Vs (min) (V) |
2.7 |
Rating |
Catalog |
Features |
POR |
Iq per channel (typ) (mA) |
0.07 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
5 |
VICR (max) (V) |
40.2 |
VICR (min) (V) |
2.5 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
65ns propagation delay
Rail-to-rail inputs
Split supply option (TLV187x)
The TLV183x and TLV184x are high-speed comparators with operating voltages up to 40V. The comparators offer rail-to-rail inputs with push-pull and open-drain output options. These features coupled with 65ns propagation delay make this family excellent for high speed current sensing and voltage protection applications.

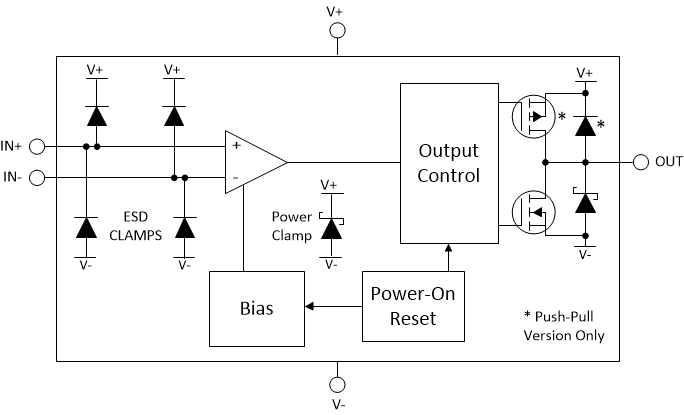

All devices include a Power-On Reset (POR) feature that makes sure the output is in a known state until the minimum supply voltage has been reached. Once this voltage has been reached, the output responds to the inputs, thus preventing false outputs during system power-up and power-down.
The TLV183x comparators have a push-pull output stage, which are designed for applications where symmetry between rising and falling output responses is desired. The TLV184x comparators have an open-drain output stage, making them appropriate for level transition.
