ACTIVE
Number of channels |
48 |
Topology |
Current Sink |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Vin (min) (V) |
3 |
Vin (max) (V) |
5.5 |
Features |
Adjacent-Pin Short Detection, CRC, Hybrid Dimming/Phase Shift, LED Open Detection, LED Short Detection, LED Short to Ground Detection, Local dimming |

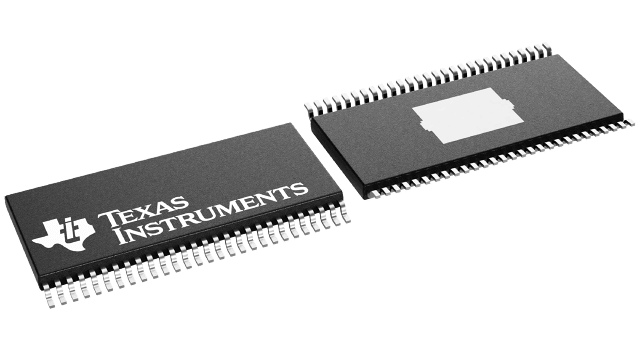

HTSSOP (DCA)-56-113.4 mm² 14 x 8.1
The TLC69637-Q1 is a LED driver with 48 constant current sink channels which could provide up to 16-bit individual pixel-level LED PWM control. The additional 7-bit dot correction (DC) is also implemented to each channel to control peak current. Each device shares data stream by serial peripheral interface (SPI) which supports up to 511 devices connection. The interface is software compatible with LED drivers in the same group which can be applied to different application scenarios based on LED current and total LED number.
To optimize overall systematic power efficiency, the device is equipped with adaptive headroom voltage control (AHVC) scheme to optimize headroom voltage across each channel and device. Only the OUT47 pin from the last device of daisy chain is required to be programmed as FB pin to optimize LED supply voltage from DC/DC.
The TLC69637-Q1 is equipped diagnostics for LED, current sink, communication and device.
