ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
GBW (typ) (MHz) |
12 |
Slew rate (typ) (V/µs) |
5 |
Rail-to-rail |
Out |
Vos (offset voltage at 25°C) (max) (mV) |
4 |
Iq per channel (typ) (mA) |
2 |
Vn at 1 kHz (typ) (nV√Hz) |
4 |
THD + N at 1 kHz (typ) (%) |
0.003 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.0014 |
Architecture |
Bipolar |
CMRR (typ) (dB) |
85 |
Input bias current (max) (pA) |
750000 |
PDIP (N)-14-181.42 mm² 19.3 x 9.4

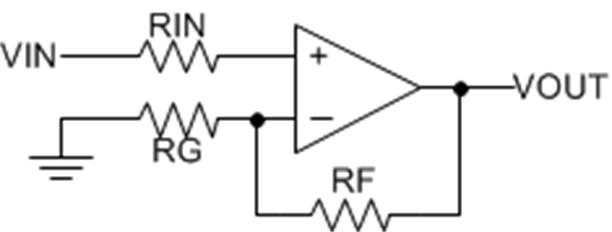

The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification.
The TL971 is housed in the space-saving 5-pin SOT-23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).
