ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.4 |
BW at Acl (MHz) |
150 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
220 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
3.3 |
Iq per channel (typ) (mA) |
1.35 |
Rail-to-rail |
In to V-, Out |
Vos (offset voltage at 25°C) (max) (mV) |
0.175 |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (mA) |
45 |
2nd harmonic (dBc) |
128 |
3rd harmonic (dBc) |
139 |
Frequency of harmonic distortion measurement (MHz) |
0.1 |
GBW (typ) (MHz) |
135 |
Input bias current (max) (pA) |
1500000 |
Features |
Shutdown |
CMRR (typ) (dB) |
110 |
Rating |
Catalog |

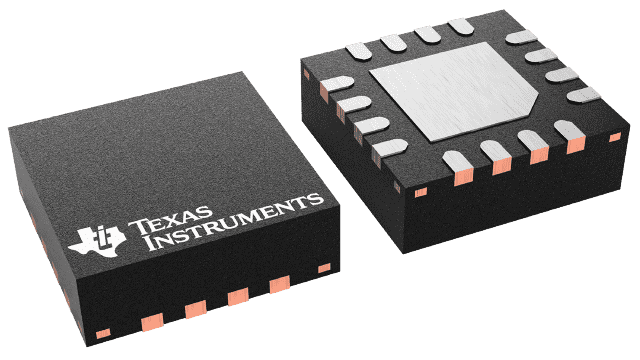

VQFN (RGT)-16-9 mm² 3 x 3

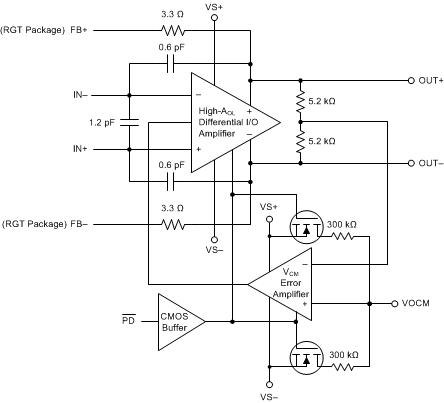

The THS4551 fully differential amplifier offers an easy interface from single-ended sources to the differential output required by high-precision analog-to-digital converters (ADCs). Designed for exceptional dc accuracy, low noise, and robust capacitive load driving, this device is well suited for data acquisition systems where high precision is required along with the best signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) through the amplifier and ADC combination.
The THS4551 features the negative rail input required when interfacing a dc-coupled, ground-centered, source signal to a single-supply differential input ADC. Very low dc error and drift terms support the emerging 16- to 20-bit successive-approximation register (SAR) input requirements. A wide-range output common-mode control supports the ADC running from 1.8-V to 5-V supplies with ADC common-mode input requirements from 0.7 V to greater than 3.0 V.

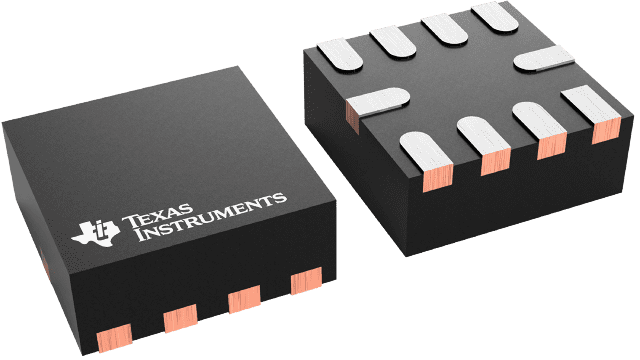

The THS4551 device is characterized for operation over the wide temperature range of –40°C to +125°C, and is available in 8-pin VSSOP, 16-pin VQFN, and 10-pin WQFN packages.
