THS2630

ACTIVE

35-V, 180-MHz high-speed low-noise fully-differential amplifier

Texas Instruments THS2630 Product Info

1 April 2026 3

Parameters

Number of channels

1

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

5

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

35

BW at Acl (MHz)

187

Acl, min spec gain (V/V)

1

Slew rate (typ) (V/µs)

75

Architecture

Bipolar, Fully Differential ADC Driver

Vn at flatband (typ) (nV√Hz)

1.1

Iq per channel (typ) (mA)

8.9

Rail-to-rail

No

Vos (offset voltage at 25°C) (max) (mV)

1.3

Operating temperature range (°C)

-40 to 85

Iout (typ) (mA)

85

GBW (typ) (MHz)

215

Input bias current (max) (pA)

9800000

Features

Shutdown

CMRR (typ) (dB)

95

Rating

Catalog

Package

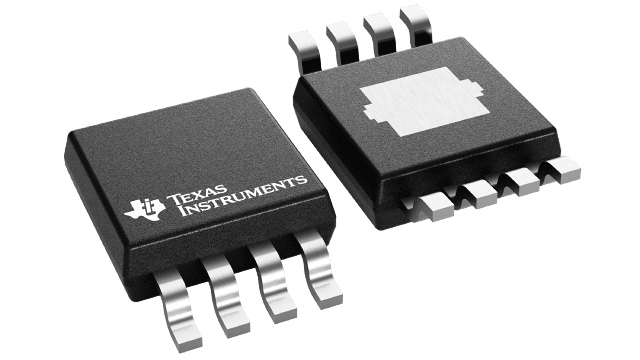

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

Features

  • High performance
    • Bandwidth: 187MHz (V CC = ±15 V, G = 1 V/V)
    • Slew rate: 75 V/µs
    • Gain bandwidth product: 245 MHz
    • Distortion: –108 dBc THD at 2 V PP, 250 kHz
  • Voltage noise
    • 1/f voltage noise corner: 85 Hz
    • 1.1 nV/√Hz input-referred noise
  • Single supply operating range: 5 V to 35 V
  • Quiescent current (shutdown): 770 µA (THS2630S)
  • High performance
    • Bandwidth: 187MHz (V CC = ±15 V, G = 1 V/V)
    • Slew rate: 75 V/µs
    • Gain bandwidth product: 245 MHz
    • Distortion: –108 dBc THD at 2 V PP, 250 kHz
  • Voltage noise
    • 1/f voltage noise corner: 85 Hz
    • 1.1 nV/√Hz input-referred noise
  • Single supply operating range: 5 V to 35 V
  • Quiescent current (shutdown): 770 µA (THS2630S)

Description

The THS2630 is one in a family of fully differential-input and differential-output devices fabricated using Texas Instruments state-of-the-art, high voltage, complementary bipolar process.

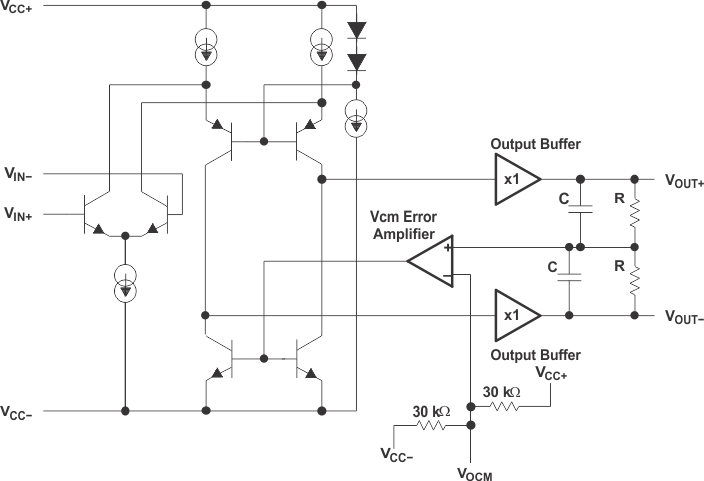

The THS2630 uses a true fully differential signal path from input to output, and has a high supply capability of up to ±17.5 V. This design leads to excellent common-mode noise rejection (95 dB at 800 kHz) and total harmonic distortion (−108 dBc at 2 V PP, 250 kHz). The wide supply range allows high-voltage differential signal chains to benefit from the improved headroom and dynamic range without adding separate amplifiers for each polarity of the differential signal.

The THS2630 is characterized for operation over the wide temperature range of –40°C to +85°C.
