Texas Instruments THP210 Product Info

Parameters

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	3
Vos (offset voltage at 25°C) (max) (mV)	0.04
Offset drift (typ) (µV/°C)	0.1
Input bias current (max) (pA)	2000
GBW (typ) (MHz)	9.2
Features	Super Beta
Slew rate (typ) (V/µs)	15
Rail-to-rail	No
Iq per channel (typ) (mA)	0.95
Vn at 1 kHz (typ) (nV√Hz)	3.7
CMRR (typ) (dB)	140
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Iout (typ) (A)	0.031
Architecture	Bipolar
Input common mode headroom (to negative supply) (typ) (V)	1
Input common mode headroom (to positive supply) (typ) (V)	-1
Output swing headroom (to negative supply) (typ) (V)	0.1
Output swing headroom (to positive supply) (typ) (V)	-0.1
THD + N at 1 kHz (typ) (%)	0.0001

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

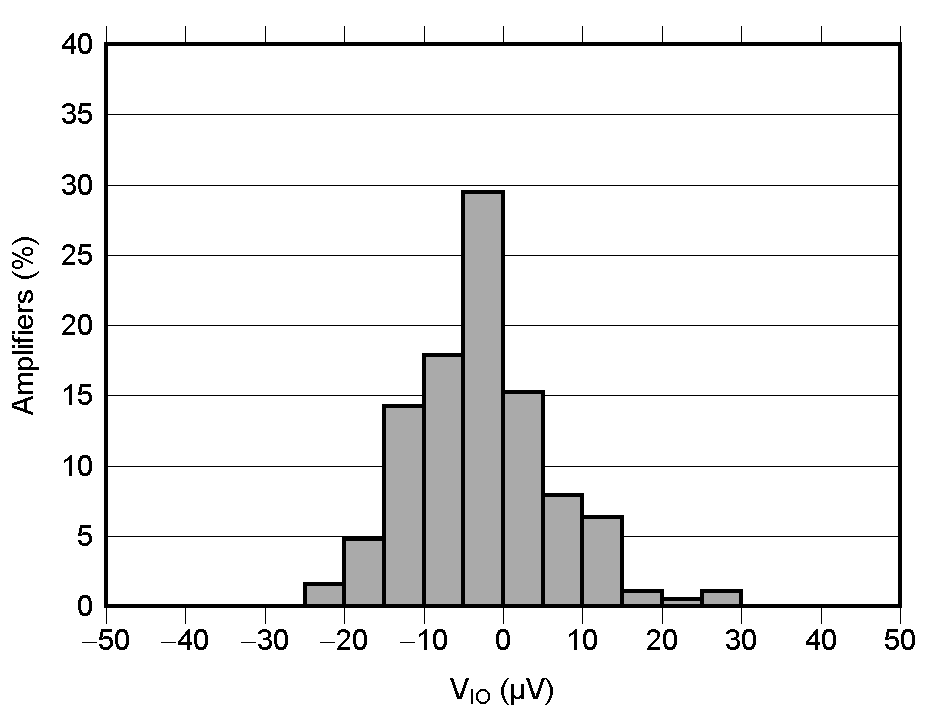

Input offset voltage: ±40 µV (maximum)
Input offset voltage drift: 0.35 µV/°C (maximum)
Low supply current: 950 µA at ±18 V
Low input bias current: 2 nA (maximum)
Low input bias current drift: 15 pA/°C (maximum)
Gain-bandwidth product: 9.2 MHz
Differential output slew rate: 15 V/µs
Low input voltage noise: 3.7 nV/√ Hz at 1 kHz

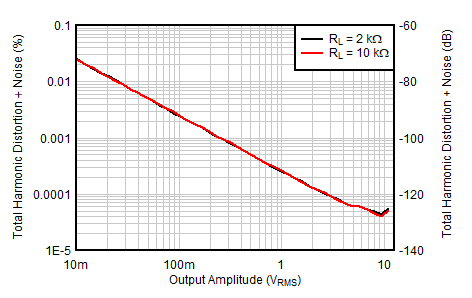

Low THD + N: –120 dB at 10 kHz
Wide input and output common-mode range
Wide single-supply operating range: 3 V to 36 V
Low supply current power-down feature: < 20 µA
Overload power limit
Current limit
Package: 8-pin VSSOP, 8-pin SOIC
Temperature range: –40°C to +125°C

Input offset voltage: ±40 µV (maximum)
Input offset voltage drift: 0.35 µV/°C (maximum)
Low supply current: 950 µA at ±18 V
Low input bias current: 2 nA (maximum)
Low input bias current drift: 15 pA/°C (maximum)
Gain-bandwidth product: 9.2 MHz
Differential output slew rate: 15 V/µs
Low input voltage noise: 3.7 nV/√ Hz at 1 kHz
Low THD + N: –120 dB at 10 kHz
Wide input and output common-mode range
Wide single-supply operating range: 3 V to 36 V
Low supply current power-down feature: < 20 µA
Overload power limit
Current limit
Package: 8-pin VSSOP, 8-pin SOIC
Temperature range: –40°C to +125°C

Description

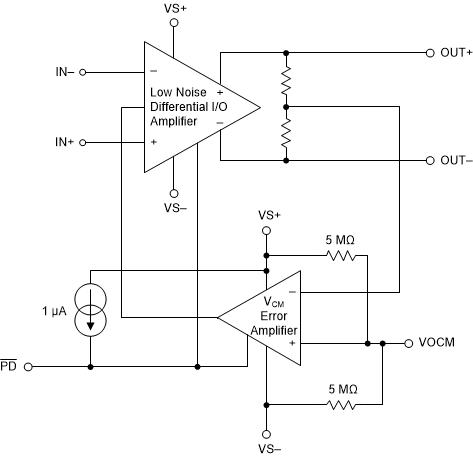

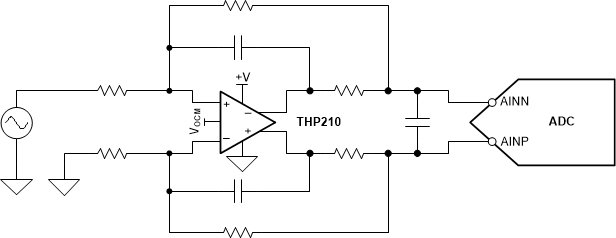

The THP210 is an ultra-low-offset, low-noise, high-voltage, precision, fully differential amplifier that easily filters and drives fully differential signal chains. The THP210 is also used to convert single-ended sources to differential outputs as required by high-resolution analog-to-digital converters (ADCs). Designed for exceptional offset, low noise and THD, the bipolar super-beta inputs yield a very-low noise figure at very-low quiescent current and input bias current. This device is designed for signal conditioning circuits where low power offset and power consumption are required, along with excellent signal-to-noise ratio (SNR).

The THP210 features high-voltage supply capability, allowing for supply voltages up to ±18 V. This capability allows high-voltage differential signal chains to benefit from the improved headroom and dynamic range without adding separate amplifiers for each polarity of the differential signal. Very-low voltage and current noise enables the THP210 for use in high-gain configurations with minimal impact to the signal fidelity.

The THP210 is an ultra-low-offset, low-noise, high-voltage, precision, fully differential amplifier that easily filters and drives fully differential signal chains. The THP210 is also used to convert single-ended sources to differential outputs as required by high-resolution analog-to-digital converters (ADCs). Designed for exceptional offset, low noise and THD, the bipolar super-beta inputs yield a very-low noise figure at very-low quiescent current and input bias current. This device is designed for signal conditioning circuits where low power offset and power consumption are required, along with excellent signal-to-noise ratio (SNR).

The THP210 features high-voltage supply capability, allowing for supply voltages up to ±18 V. This capability allows high-voltage differential signal chains to benefit from the improved headroom and dynamic range without adding separate amplifiers for each polarity of the differential signal. Very-low voltage and current noise enables the THP210 for use in high-gain configurations with minimal impact to the signal fidelity.
