Texas Instruments TAS5760M-Q1 Product Info

Parameters

Output power (W)	25
Power stage supply (max) (V)	26.4
Power stage supply (min) (V)	4.5
Speaker channels (max)	Stereo
Audio input type	Digital Input
Control interface	Hardware, Software
THD + N at 1 kHz (%)	0.02
Sampling rate (max) (Hz)	96000
Rating	Automotive
Operating temperature range (°C)	-40 to 105

Package

HTSSOP (DAP)-32-89.1 mm² 11 x 8.1

Features

Qualified for Automotive Applications
- Temperature grade 1: –40°C to +125°C
Minimum Supply Voltage down to 4.5 V
Adjustable Switching Frequencies
Selectable Hardware or Software Control
Audio Performance (PVDD = 12 V, R_SPK = 8 Ω, SPK_GAIN[1:0] Pins = 00)
- Idle Channel Noise = 66 µVrms (A-Wtd)
- THD+N = 0.02% (at 1 W, 1 kHz)
- SNR = 99.7 dB A-Wtd (Ref. to THD+N = 1%)
Audio I/O Configuration:
- Single Stereo I²S Input
- Stereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation
- 32, 44.1, 48, 88.2, 96 kHz Sample Rates
General Operational Features:
- Integrated Digital Output Clipper
- Programmable I²C Address (1101100[^R/_W] or 1101101[^R/_W])
- Closed-Loop Amplifier Architecture
Robustness Features:
- Clock Error, DC, and Short-Circuit Protection
- Overtemperature and Programmable Overcurrent Protection

Qualified for Automotive Applications
- Temperature grade 1: –40°C to +125°C
Minimum Supply Voltage down to 4.5 V
Adjustable Switching Frequencies
Selectable Hardware or Software Control
Audio Performance (PVDD = 12 V, R_SPK = 8 Ω, SPK_GAIN[1:0] Pins = 00)
- Idle Channel Noise = 66 µVrms (A-Wtd)
- THD+N = 0.02% (at 1 W, 1 kHz)
- SNR = 99.7 dB A-Wtd (Ref. to THD+N = 1%)
Audio I/O Configuration:
- Single Stereo I²S Input
- Stereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation
- 32, 44.1, 48, 88.2, 96 kHz Sample Rates
General Operational Features:
- Integrated Digital Output Clipper
- Programmable I²C Address (1101100[^R/_W] or 1101101[^R/_W])
- Closed-Loop Amplifier Architecture
Robustness Features:
- Clock Error, DC, and Short-Circuit Protection
- Overtemperature and Programmable Overcurrent Protection

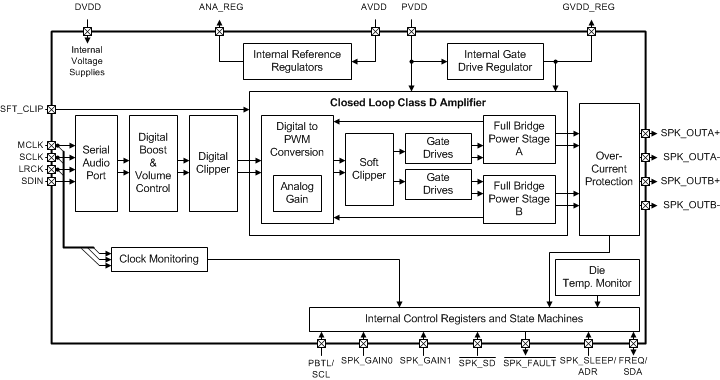

Description

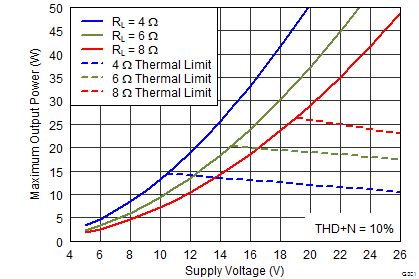

The TAS5760M-Q1 is a stereo digital input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5760M-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V).

An optimal mix of thermal performance and device cost is provided in the 120-mΩ R_DS(ON) of the output MOSFETs.

The device is offered in a thermally enhanced 32-Pin HTSSOP (DAP) package.

The TAS5760M-Q1 is a stereo digital input Class-D audio amplifier which is ideal for use in automotive emergency call (eCall), telematics, acoustic vehicle alerting system (AVAS) and EV/HEV sound generation applications. The device provides up to 25 W instantaneous power into 4 Ω at 10% THD+N at 14.4 V. The TAS5760M-Q1 also includes hardware and software (I²C) control modes, an integrated digital clipper, selectable gain options, and a wide power supply operating range (4.5 V – 26.4 V).

An optimal mix of thermal performance and device cost is provided in the 120-mΩ R_DS(ON) of the output MOSFETs.

The device is offered in a thermally enhanced 32-Pin HTSSOP (DAP) package.

ELECTRONIC COMPONENTS
All In One Distributor

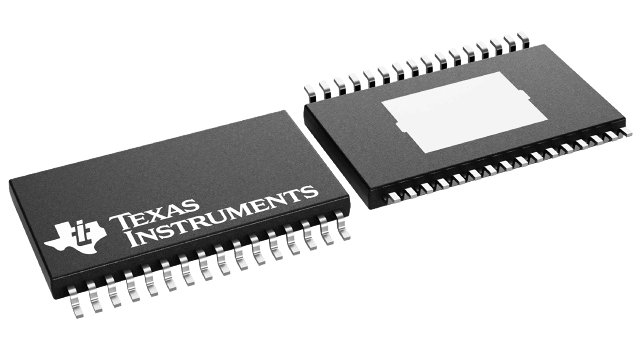

TAS5760M-Q1
