Texas Instruments TAS5558 Product Info

Parameters

Audio input type	Digital
Control interface	I2C
Digital supply (max) (V)	3.6
Digital supply (min) (V)	3
Dynamic range (dB)	105
Speaker channels (max)	8
THD + N at 1 kHz (%)	0.01
Operating temperature range (°C)	-40 to 85
Rating	Catalog

Package

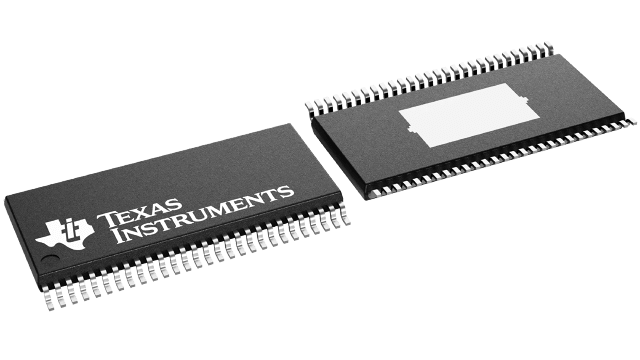

HTSSOP (DCA)-56-113.4 mm² 14 x 8.1

Features

General Features
- 8ch Asynchronous Sample Rate Converter
- 8 Channel Audio Processing for 32-192 kHz
  (ARSC to 96kHz)
- 4 Channel Native Audio Processing at 192kHZ
- 30 kHz Audio Bandwidth for DTS-HD
  Compatibility
- Energy Manager for Overall System Power
  Control
- Power Supply Volume Control
Audio Input or Output
- Up to Five Synchronous Serial Audio Inputs
  (10 Channels)
- Up to One Synchronous Serial Audio Outputs
  (2 Channels)
- Trimmed Internal Oscillator for Clock Auto
  Detection and Limp Mode
- Slave Mode 32-192KHz With Auto/Manual
  Sample Rate Detection
- Eight Differential PWM Output That can
  Support AD or BD Modulation
- Two Differential PWM Headphone Outputs
- I2S Out for External Wireless Sub
- PWM Output Supports Single Ended (S.E.) or
  Bridge Tied Load (BTL)
Audio Processing
- Volume Control Range 18 dB to –127 dB
  (Master and Eight Channel Volume)
- Bass and Treble Tone Controls With ±18-dB
  Range, Selectable Corner Frequencies
- Configurable Loudness Compensation
- Two Dynamic Range Compressors With Two
  Thresholds, Two Offsets, and Three Slopes
- Seven Biquads Per Channel
- Coefficient Banking and Auto Bank Switch
PWM Processing
- >105-dB Dynamic Range
- THD+N < 0.1% (0–40 kHz)
- 20-Hz–40-kHz, Flat Noise Floor for 32KHz –
  192KHz
- Flexible Automute Logic With Programmable
  Threshold and Duration for Noise-Free
  Operation
- Power-Supply Volume Control (PSVC) in High-
  Performance Applications
- Adjustable Modulation Limit

General Features
- 8ch Asynchronous Sample Rate Converter
- 8 Channel Audio Processing for 32-192 kHz
  (ARSC to 96kHz)
- 4 Channel Native Audio Processing at 192kHZ
- 30 kHz Audio Bandwidth for DTS-HD
  Compatibility
- Energy Manager for Overall System Power
  Control
- Power Supply Volume Control
Audio Input or Output
- Up to Five Synchronous Serial Audio Inputs
  (10 Channels)
- Up to One Synchronous Serial Audio Outputs
  (2 Channels)
- Trimmed Internal Oscillator for Clock Auto
  Detection and Limp Mode
- Slave Mode 32-192KHz With Auto/Manual
  Sample Rate Detection
- Eight Differential PWM Output That can
  Support AD or BD Modulation
- Two Differential PWM Headphone Outputs
- I2S Out for External Wireless Sub
- PWM Output Supports Single Ended (S.E.) or
  Bridge Tied Load (BTL)
Audio Processing
- Volume Control Range 18 dB to –127 dB
  (Master and Eight Channel Volume)
- Bass and Treble Tone Controls With ±18-dB
  Range, Selectable Corner Frequencies
- Configurable Loudness Compensation
- Two Dynamic Range Compressors With Two
  Thresholds, Two Offsets, and Three Slopes
- Seven Biquads Per Channel
- Coefficient Banking and Auto Bank Switch
PWM Processing
- >105-dB Dynamic Range
- THD+N < 0.1% (0–40 kHz)
- 20-Hz–40-kHz, Flat Noise Floor for 32KHz –
  192KHz
- Flexible Automute Logic With Programmable
  Threshold and Duration for Noise-Free
  Operation
- Power-Supply Volume Control (PSVC) in High-
  Performance Applications
- Adjustable Modulation Limit

Description

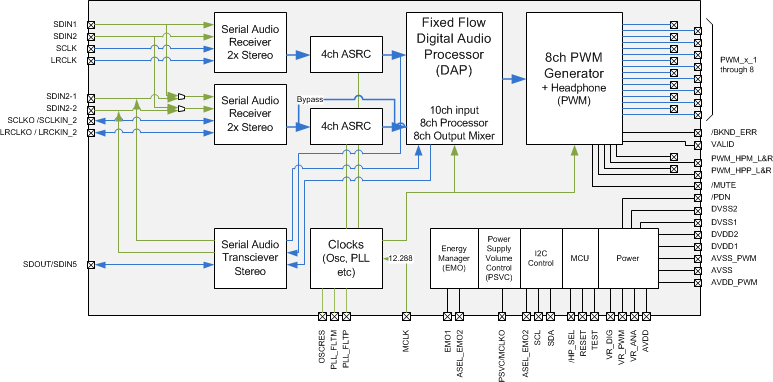

The TAS5558 is an 8-channel Digital Pulse Width Modulator (PWM) with Digital Audio Processing and Sample Rate Converter that provides both advanced performance and a high level of system integration. TAS5558 is designed to support DTS-HD specification Blu-ray HTiB applications. The ASRC consists of two separate modules which handle 4 channels each. Therefore, it is possible to support up to two different input sampling rates.

Texas Instruments Power Stages are designed to work seamlessly with the TAS5558. The TAS5558 also provides a high-performance, differential output to drive an external, differential-input, analog headphone amplifier.

The TAS5558 supports AD, BD, and ternary modulation operating at a 384-kHz switching rate for 48-, 96-, and 192-kHz data. The external crystal used must be 12.288 MHz. The TAS5558 also features power-supply-volume-control (PSVC), which improves dynamic range at lower power level and can be used as part of a Class G power supply when used with closed-loop PWM input power stages.
