Texas Instruments TAS5421-Q1 Product Info

Parameters

Output power (W)	22
Power stage supply (max) (V)	18
Power stage supply (min) (V)	4.5
Speaker channels (max)	Mono
Features	thermal pad down
Audio input type	Analog Input
Control interface	I2C
THD + N at 1 kHz (%)	0.05
Switching frequency (max) (Hz)	500000
Output noise voltage (µV)	65
Rating	Automotive
Operating temperature range (°C)	-40 to 125

Package

HTSSOP (PWP)-16-32 mm² 5 x 6.4

Features

Mono BTL Digital Power Amplifier
22-W Output Power at 10% THD+N into 4 Ω
4.5-V to 18-V Operating Range

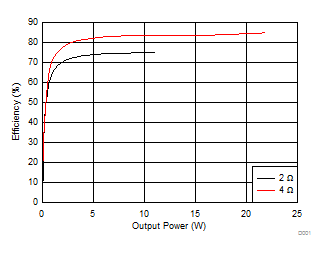

85% Efficiency into 4 Ω
Differential Analog Input
Speaker Guard™ Speaker Protection with Adjustable Power Limiter
75-dB Power-Supply Rejection Ratio (PSRR)
Load Diagnostic Functions:
- Open and Shorted Output Load
- Output-to-Power and Output-to-Ground Shorts
Protection and Monitoring Functions:
- Short-Circuit Protection
- 40-V Load Dump Protection per ISO-7637-2
- Output DC Level Detection while Music is Playing
- Overtemperature Protection
- Overvoltage and Undervoltage Protection

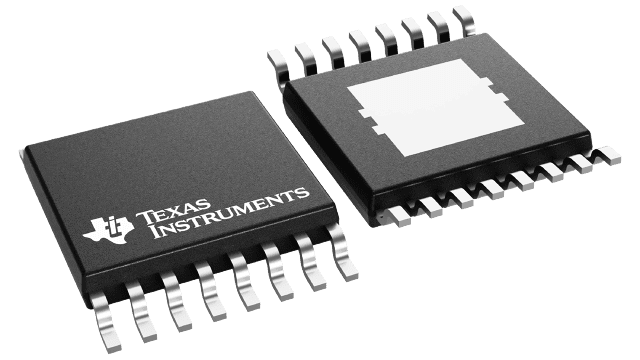

Thermally Enhanced 16-Pin HTSSOP (PWP) Package with PowerPAD Package (Pad Down)
Designed for Automotive EMC Requirements
Qualified According to AEC-Q100 Grade 2
ISO9000: 2002 TS16949 Certified
–40°C to 125°C Ambient Temperature Range

All trademarks are the property of their respective owners.

Mono BTL Digital Power Amplifier
22-W Output Power at 10% THD+N into 4 Ω
4.5-V to 18-V Operating Range
85% Efficiency into 4 Ω
Differential Analog Input
Speaker Guard™ Speaker Protection with Adjustable Power Limiter
75-dB Power-Supply Rejection Ratio (PSRR)
Load Diagnostic Functions:
- Open and Shorted Output Load
- Output-to-Power and Output-to-Ground Shorts
Protection and Monitoring Functions:
- Short-Circuit Protection
- 40-V Load Dump Protection per ISO-7637-2
- Output DC Level Detection while Music is Playing
- Overtemperature Protection
- Overvoltage and Undervoltage Protection
Thermally Enhanced 16-Pin HTSSOP (PWP) Package with PowerPAD Package (Pad Down)
Designed for Automotive EMC Requirements
Qualified According to AEC-Q100 Grade 2
ISO9000: 2002 TS16949 Certified
–40°C to 125°C Ambient Temperature Range

All trademarks are the property of their respective owners.

Description

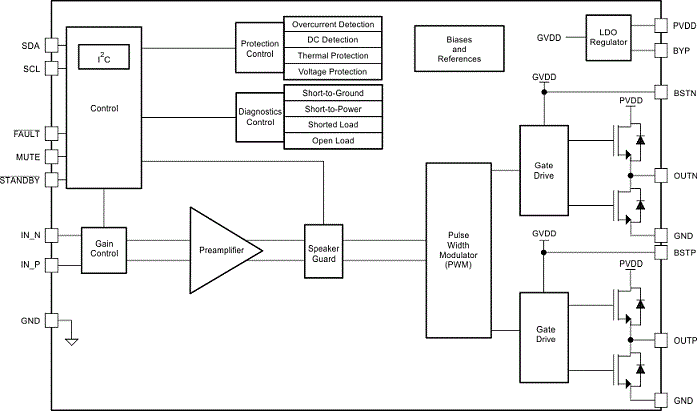

The TAS5421-Q1 is a mono digital audio amplifier, ideal for use in automotive emergency call (eCall), telematics, instrument cluster, and infotainment applications. The device provides up to 22 W into 4 Ω at less than 10% THD+N from a 14.4-Vdc automotive battery. The wide operating voltage range and excellent efficiency make the device ideal for start-stop support or running from a backup battery when required. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the speaker through I²C.

For all available packages, see the orderable addendum at the end of the datasheet.

The TAS5421-Q1 is a mono digital audio amplifier, ideal for use in automotive emergency call (eCall), telematics, instrument cluster, and infotainment applications. The device provides up to 22 W into 4 Ω at less than 10% THD+N from a 14.4-Vdc automotive battery. The wide operating voltage range and excellent efficiency make the device ideal for start-stop support or running from a backup battery when required. The integrated load-dump protection reduces external voltage clamp cost and size, and the onboard load diagnostics report the status of the speaker through I²C.

For all available packages, see the orderable addendum at the end of the datasheet.
