Texas Instruments SN74LVC827A Product Info

Parameters

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	3.6
Number of channels	10
IOL (max) (mA)	24
Supply current (max) (µA)	10
IOH (max) (mA)	-24
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

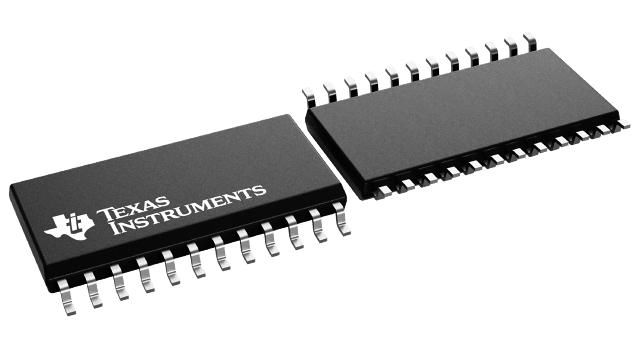

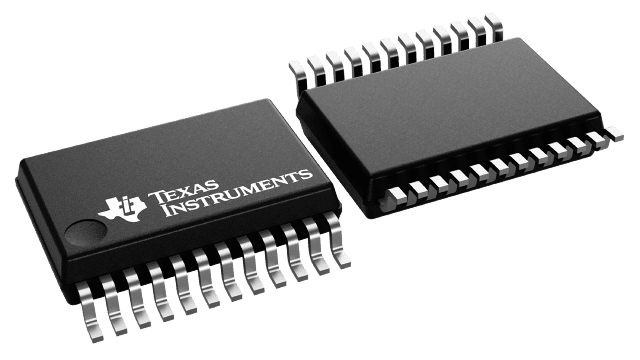

SOIC (DW)-24-159.65 mm² 15.5 x 10.3

Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t_pd of 6.7 ns at 3.3 V
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2 V at V_CC = 3.3 V, T_A = 25°C
Supports Mixed-Mode Signal Operation on
All Ports (5-V Input/Output Voltage With
3.3-V V_CC)
I_off Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t_pd of 6.7 ns at 3.3 V
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2 V at V_CC = 3.3 V, T_A = 25°C
Supports Mixed-Mode Signal Operation on
All Ports (5-V Input/Output Voltage With
3.3-V V_CC)
I_off Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

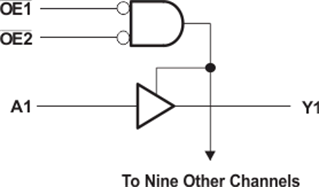

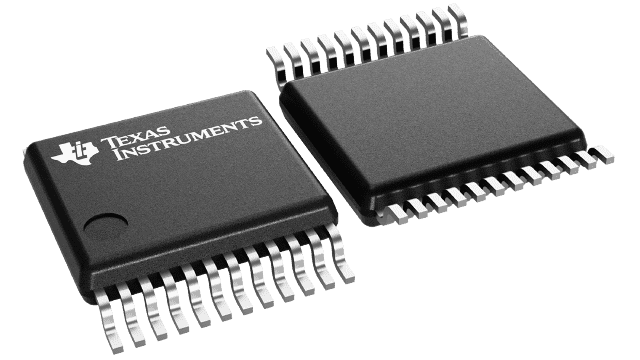

The SN74LVC827A device is a 10-bit buffer/bus driver is designed for 1.65-V to 3.6-V V_CC operation.
