0
ACTIVE
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
8 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Input type |
TTL |
Output type |
CMOS |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Technology family |
AHCT |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

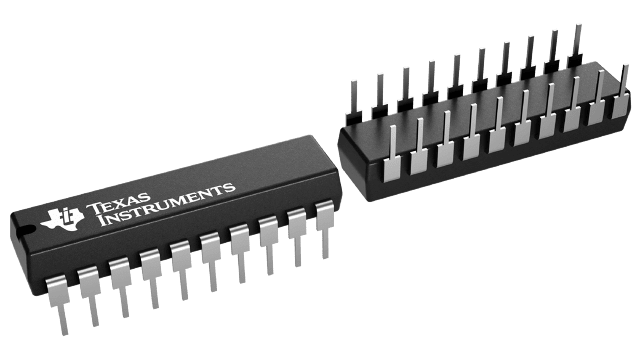

PDIP (N)-20-228.702 mm² 24.33 x 9.4

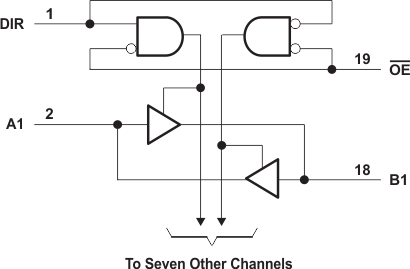

The SNx4AHCT245 octal bus transceivers are designed for asynchronous two-way communication between data buses. These parts operate from 4.5 V to 5.5 V.
