ACTIVE
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
16 |
IOL (max) (mA) |
8 |
Supply current (max) (µA) |
40 |
IOH (max) (mA) |
-8 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

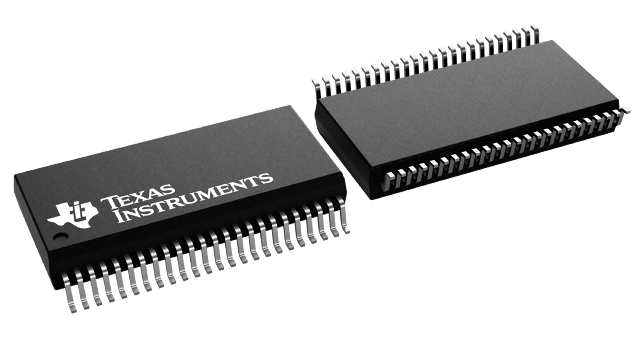

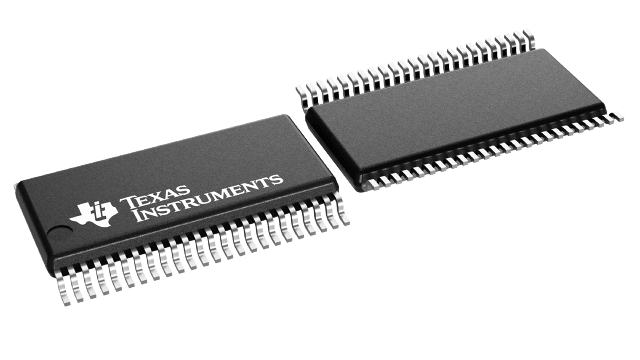

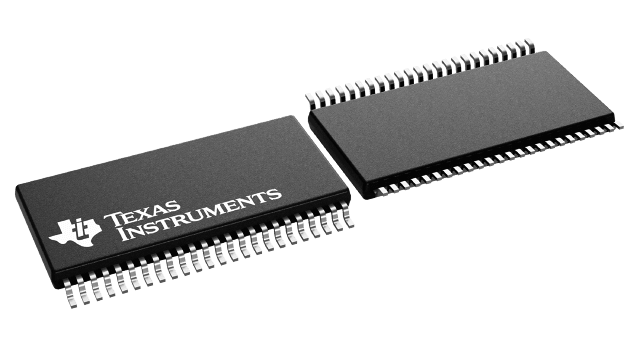

SSOP (DL)-48-164.358 mm² 15.88 x 10.35

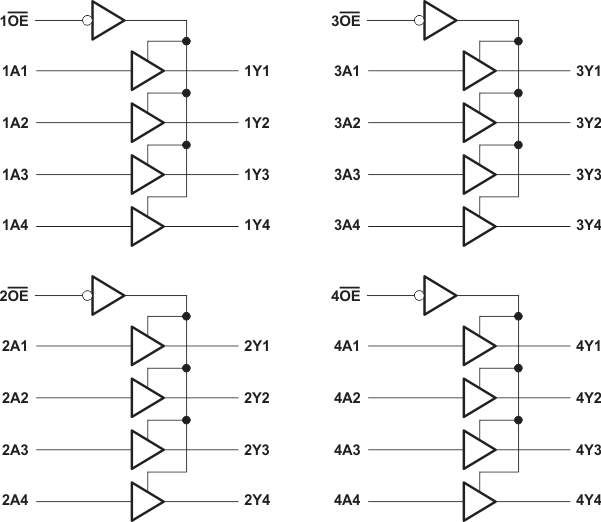

The SN74AHCT16244 device is a 16-bit buffer and line driver specifically designed to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
