ACTIVE
Technology family |
ABT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
10 |
IOL (max) (mA) |
12 |
Supply current (max) (µA) |
40000 |
IOH (max) (mA) |
-12 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Balanced outputs, Damping resistors, Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

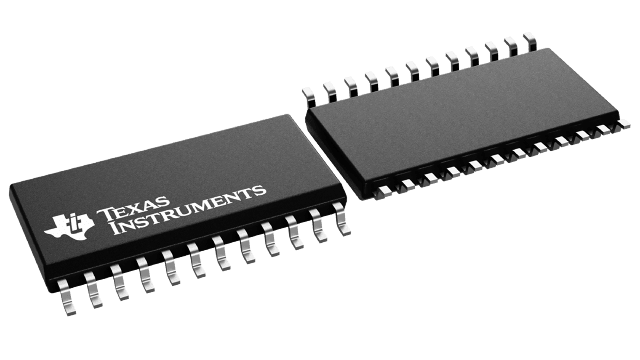

SOIC (DW)-24-159.65 mm² 15.5 x 10.3
Series Resistors, So No External Resistors Are RequiredEPIC-IIB is a trademark of Texas Instruments Incorporated.
These 10-bit buffers or bus drivers provide a high-performance bus interface for wide data paths or buses carrying parity.
The 3-state control gate is a 2-input AND gate with active-low
inputs so that if either output-enable (
or
) input is high, all ten outputs
are in the high-impedance state. The 'ABT2827 provide true data at
their outputs.
To ensure the high-impedance state during power up or power down,
should be tied
to VCC through a pullup resistor; the minimum value of the
resistor is determined by the current-sinking capability of the
driver.
The outputs, which are designed to source or sink up to 12 mA,
include equivalent 25-
series resistors to reduce overshoot and undershoot.
The SN54ABT2827 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT2827 is characterized for operation from -40°C to 85°C.
