ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.1 |
Offset drift (typ) (µV/°C) |
0.5 |
Input bias current (max) (pA) |
20 |
GBW (typ) (MHz) |
2.5 |
Features |
EMI Hardened, High Cload Drive, e-Trim™ |
Slew rate (typ) (V/µs) |
5.5 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.14 |
Vn at 1 kHz (typ) (nV√Hz) |
15 |
CMRR (typ) (dB) |
140 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.065 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.05 |
Output swing headroom (to positive supply) (typ) (V) |
-0.05 |
THD + N at 1 kHz (typ) (%) |
0.0012 |
SOIC (D)-8-29.4 mm² 4.9 x 6

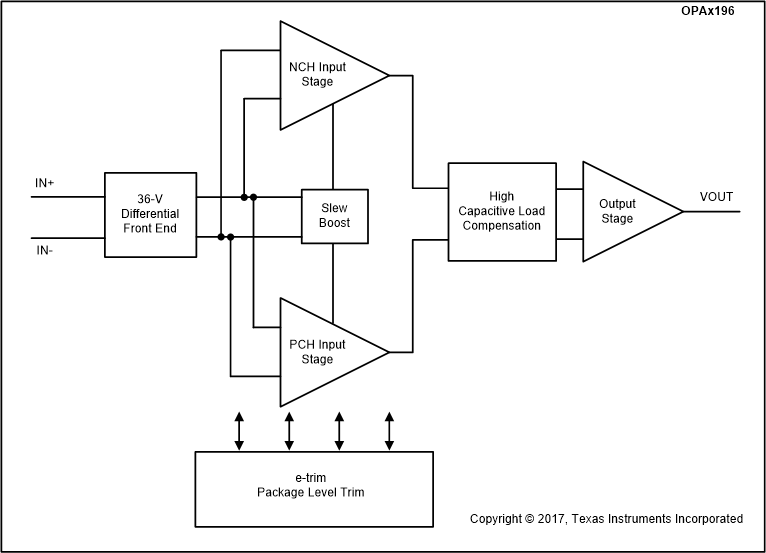

The OPAx196 family (OPA196, OPA2196, and OPA4196) is a new generation of 36-V, rail-to-rail e-trim™ operational amplifiers (op amps).
These devices offer very low offset voltage (±25 µV, typical), drift (±0.5 µV/°C, typical), and low bias current (±5 pA, typical) combined with very low quiescent current (140 µA/channel, typical) across the entire output range.
Unique features, such as differential input-voltage range to the supply rail, high output current (±65 mA), and high capacitive load drive of up to 1 nF make the OPAx196 a robust, high-performance operational amplifier for high-voltage industrial applications.
The OPAx196 family of op amps is available in standard packages and is specified from –40°C to +125°C.
