Configuration |
8:1 |
Number of channels |
1 |
Power supply voltage - single (V) |
5, 12, 16, 20, 36, 44 |
Power supply voltage - dual (V) |
+/-10, +/-15, +/-18, +/-22, +/-5 |
Protocols |
Analog |
Ron (typ) (Ω) |
4 |
CON (typ) (pF) |
185 |
ON-state leakage current (max) (µA) |
1 |
Supply current (typ) (µA) |
3 |
Bandwidth (MHz) |
30 |
Operating temperature range (°C) |
-40 to 125 |
Features |
1.8-V compatible control inputs, Break-before-make, Fail-safe logic |
Input/output continuous current (max) (A) |
0.3 |
Rating |
Automotive |
Drain supply voltage (max) (V) |
22 |
Supply voltage (max) (V) |
44 |
Negative rail supply voltage (max) (V) |
-4.5 |
TSSOP (PW)-16-32 mm² 5 x 6.4

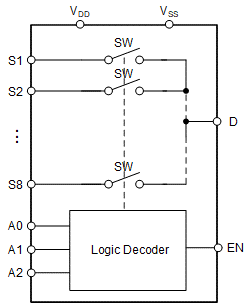

The MUX708-Q1 is an 8:1, 1 channel multiplexer featuring low on resistance. The device works with a single supply (4.5V to 44V), dual supplies (±4.5V to ±22V), or asymmetric supplies (such as VDD = 12V, VSS = –5V). The MUX708-Q1 support bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from VSS to VDD.
The MUX708-Q1 has low on and off leakage currents allowing it to be used in high precision measurement applications. The MUX708-Q1 provides latch-up immunity, preventing undesirable high current events between parasitic structures within the device typically caused by overvoltage events. A latch-up condition typically continues until the power supply rails are turned off and can lead to device failure. The latch-up immunity feature allows the MUX708-Q1 to be used in harsh environments.
