ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
17 |
Slew rate (typ) (V/µs) |
9.5 |
Vos (offset voltage at 25°C) (max) (mV) |
1.35 |
Iq per channel (typ) (mA) |
1.15 |
Vn at 1 kHz (typ) (nV√Hz) |
5.8 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1 |
Features |
Shutdown |
Input bias current (max) (pA) |
1 |
CMRR (typ) (dB) |
100 |
Iout (typ) (A) |
0.021 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
-1 |
Output swing headroom (to negative supply) (typ) (V) |
0.02 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |

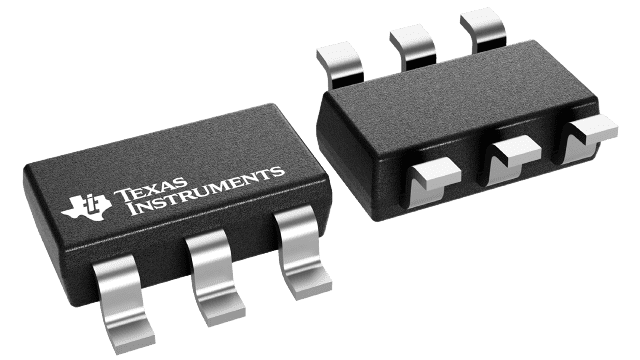

SOT-23-THN (DDC)-6-8.12 mm² 2.9 x 2.8

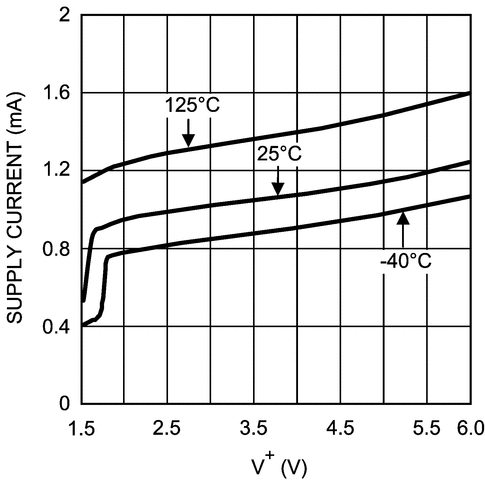

Typical 5-V Supply, Unless Otherwise Noted
The LMV791 (single) and the LMV792 (dual) low-noise, CMOS input operational amplifiers offer a low input voltage noise density of 5.8 nV/&radicHz while consuming only 1.15 mA (LMV791) of quiescent current. The LMV791 and LMV792 are unity gain stable operational amplifiers and have gain bandwidth of 17 MHz. The LMV79x have a supply voltage range of 1.8 V to 5.5 V and can operate from a single supply. The LMV79x each feature a rail-to-rail output stage capable of driving a 600-Ω load and sourcing as much as 60 mA of current.
The LMV79x family provides optimal performance in low-voltage and low-noise systems. A CMOS input stage, with typical input bias currents in the range of a few femtoamperes, and an input common-mode voltage range which includes ground, make the LMV791 and the LMV792 ideal for low-power sensor applications. The LMV79x family has a built-in enable feature which can be used to optimize power dissipation in low power applications.
The LMV791x are manufactured using TIs advanced VIP50 process and are offered in a 6-pin SOT and a 10-pin VSSOP package respectively.
