ACTIVE
Number of channels |
1 |
Output type |
Push-Pull |
Propagation delay time (µs) |
0.007 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
2.5 |
Rating |
Catalog |
Features |
Hysteresis |

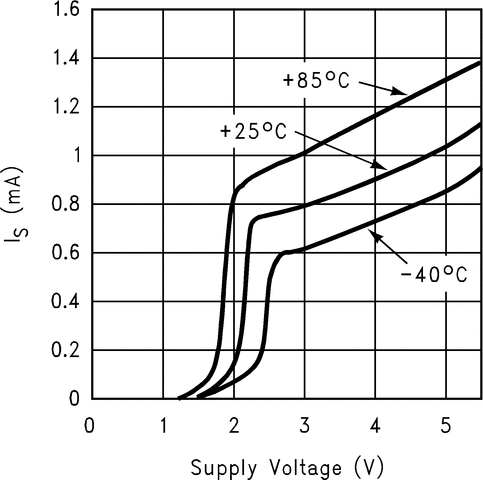

Iq per channel (typ) (mA) |
1.1 |
Vos (offset voltage at 25°C) (max) (mV) |
6 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 85 |
Input bias current (±) (max) (nA) |
950 |
VICR (max) (V) |
4.3 |
VICR (min) (V) |
-0.2 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7 V to 5 V with push-pull rail-to-rail output. This device achieves a 7-ns propagation delay while consuming only 1.1 mA of supply current at 5 V.
The LMV7219 inputs have a common mode voltage range that extends 200 mV below ground, allowing ground sensing. The internal hysteresis ensures clean output transitions even with slow-moving inputs signals.

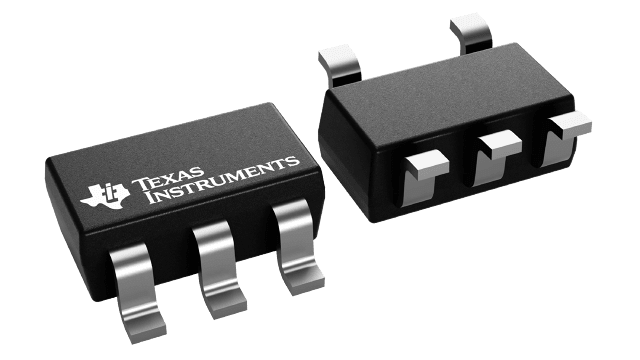

The LMV7219 is available in the SC-70 and SOT-23 packages, which are ideal for systems where small size and low power are critical.
