ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
11 |

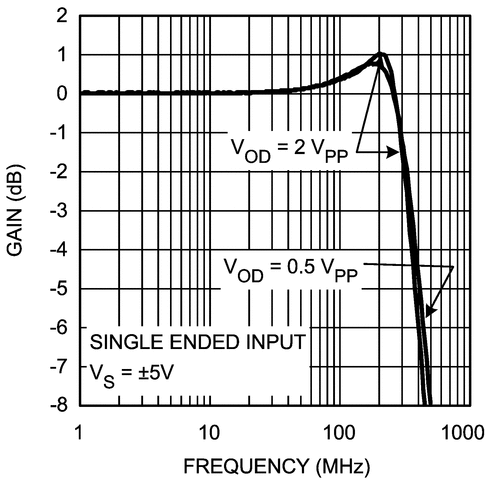

BW at Acl (MHz) |
370 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
2400 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
6 |
Iq per channel (typ) (mA) |
12.5 |
Rail-to-rail |
No |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (mA) |
65 |
2nd harmonic (dBc) |
94 |
3rd harmonic (dBc) |
96 |
Frequency of harmonic distortion measurement (MHz) |
5 |
GBW (typ) (MHz) |
370 |
Input bias current (max) (pA) |
10000000 |
CMRR (typ) (dB) |
80 |
Rating |
Automotive |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9
All trademarks are the property of their respective owners.
The LMH6551Q is a high performance voltage feedback differential amplifier. The LMH6551Q has the high speed and low distortion necessary for driving high performance ADCs as well as the current handling capability to drive signals over balanced transmission lines like CAT 5 data cables. The LMH6551Q can handle a wide range of video and data formats.

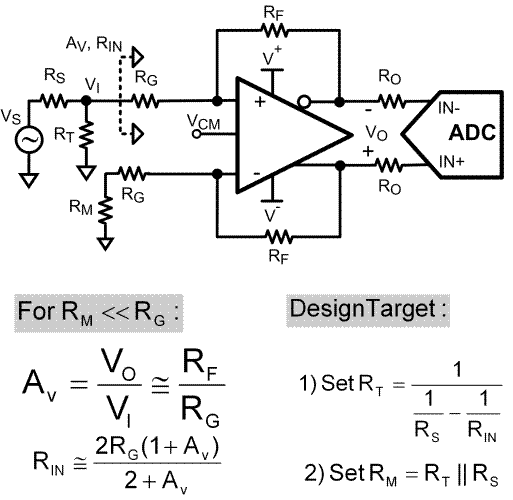

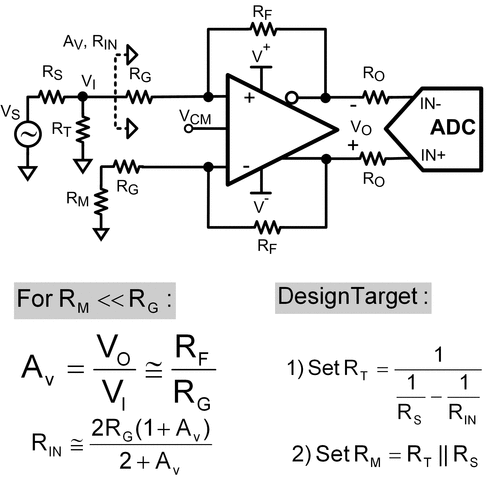

With external gain set resistors, the LMH6551Q can be used at any desired gain. Gain flexibility coupled with high speed makes the LMH6551Q suitable for use as an IF amplifier in high performance communications equipment.
The LMH6551Q is available in the VSSOP package.
