ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Vos (offset voltage at 25°C) (max) (mV) |
0.5 |
Offset drift (typ) (µV/°C) |
2 |
Input bias current (max) (pA) |
1.5 |
GBW (typ) (MHz) |
0.05 |
Slew rate (typ) (V/µs) |
0.028 |
Rail-to-rail |
In, Out |

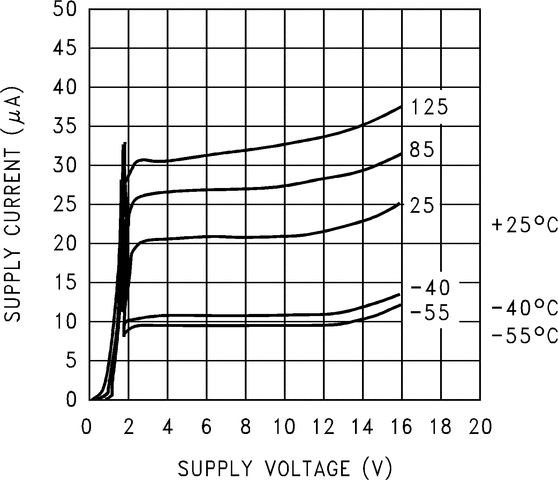

Iq per channel (typ) (mA) |
0.02 |
Vn at 1 kHz (typ) (nV√Hz) |
80 |
CMRR (typ) (dB) |
85 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.027 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.3 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-0.005 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The LMC6462 and LMC6464 (LMC646x) are micropower versions of the popular LMC6482 and LMC6484, combining a rail-to-rail input and output range with very low power consumption.
The LMC646x provide an input common-mode voltage range that exceeds both rails. The rail-to-rail output swing of the amplifiers, specified for loads down to 25kΩ, provides maximum dynamic signal range. This rail-to-rail performance of the amplifiers, combined with a high voltage gain, makes these device unique among rail-to-rail amplifiers. The LMC646x are an excellent upgrade for circuits using limited common-mode range amplifiers.
The LMC646x, with specifications at 3V and 5V, is an excellent choice for low-voltage applications. A quiescent power consumption of 60µW per amplifier (at VS = 3V) can extend the useful life of battery-operated systems. The 150fA input current, low offset voltage of 0.25mV, and 85dB CMRR maintain accuracy in battery-powered systems.
