ACTIVE
Rating |
Automotive |
Vin (max) (V) |
40 |
Vin (min) (V) |
3.65 |
Iout (max) (A) |
0.15 |
Output options |
Fixed Output |
Vout (max) (V) |
5 |
Vout (min) (V) |
3.3 |
Fixed output options (V) |
3.3, 5 |
PSRR at 100 KHz (dB) |
37 |
Iq (typ) (mA) |
4.5 |
Thermal resistance θJA (°C/W) |
156 |

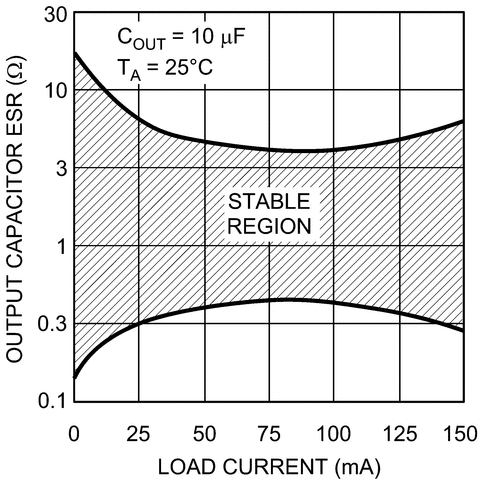

Load capacitance (min) (µF) |
10 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
250 |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-8-29.4 mm² 4.9 x 6
All trademarks are the property of their respective owners.

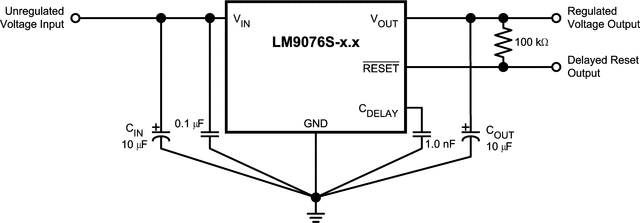

The LM9076Q is a ±3%, 150 mA logic controlled voltage regulator. The regulator features an active low delayed reset output flag which can be used to reset a microprocessor system at turn-ON and in the event that the regulator output voltage falls below a minimum value. An external capacitor programs a delay time interval before the reset output pin can return high.
Designed for automotive and industrial applications, the LM9076Q contains a variety of protection features such as thermal shutdown, input transient protection and a wide operating temperature range. The LM9076Q uses an PNP pass transistor which allows low drop-out voltage operation.
