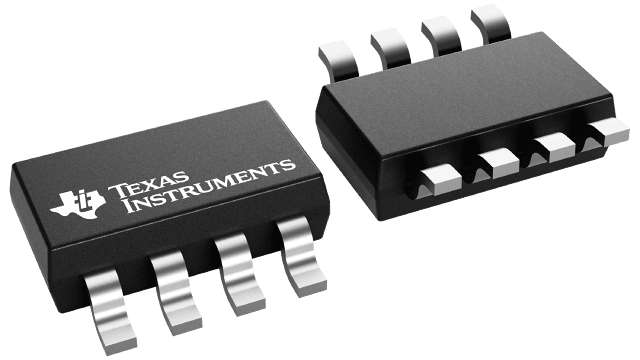

LM74704-Q1

ACTIVE

Automotive ideal diode controller with FET good open-drain output

Texas Instruments LM74704-Q1 Product Info

1 April 2026 0

Parameters

Vin (max) (V)

65

Vin (min) (V)

3.2

FET

External single FET

Device type

Ideal diode controller

Number of channels

1

Rating

Automotive

Features

Automotive load dump compatibility, Enable, Linear control, Reverse current blocking, Reverse polarity protection

Imax (A)

250

Iq (typ) (mA)

0.08

Iq (max) (mA)

0.13

TI functional safety category

Functional Safety-Capable

IGate source (typ) (µA)

11000

IGate sink (typ) (mA)

2370

IGate pulsed (typ) (A)

2.37

Operating temperature range (°C)

-40 to 125

VSense reverse (typ) (mV)

-11

Design support

EVM

Shutdown current (ISD) (mA) (A)

0.001

Product type

Ideal diode controller

Package

SOT-23-THN (DDF)-8-8.12 mm² 2.9 x 2.8

Features

  • AEC-Q100 qualified with the following results
    • Device temperature grade 1: –40°C to 125°C ambient operating temperature range
  • 3.2-V to 65-V input range (3.9-V start up)
  • –65-V reverse voltage rating
  • Charge pump for external N-Channel MOSFET
  • 20-mV ANODE to CATHODE pin forward voltage drop regulation
  • Enable pin feature
  • 1-µA shutdown current (EN=Low)
  • 80-µA operating quiescent current (EN=High)
  • 2.3-A peak gate turnoff current
  • FETGOOD output to indicate external MOSFET health status
  • Fast response to reverse current blocking: < 0.75 µs
  • EMI performance over extended frequency range (150-kHz to 1-GHz)
  • Meets automotive ISO7637 transient requirements with external TVS Diode
  • 8-pin SOT-23 package 2.90 mm × 1.60 mm
  • AEC-Q100 qualified with the following results
    • Device temperature grade 1: –40°C to 125°C ambient operating temperature range
  • 3.2-V to 65-V input range (3.9-V start up)
  • –65-V reverse voltage rating
  • Charge pump for external N-Channel MOSFET
  • 20-mV ANODE to CATHODE pin forward voltage drop regulation
  • Enable pin feature
  • 1-µA shutdown current (EN=Low)
  • 80-µA operating quiescent current (EN=High)
  • 2.3-A peak gate turnoff current
  • FETGOOD output to indicate external MOSFET health status
  • Fast response to reverse current blocking: < 0.75 µs
  • EMI performance over extended frequency range (150-kHz to 1-GHz)
  • Meets automotive ISO7637 transient requirements with external TVS Diode
  • 8-pin SOT-23 package 2.90 mm × 1.60 mm

Description

The LM74703-Q1, LM74704-Q1 is an automotive AEC Q100 qualified ideal diode controller which operates in conjunction with an external N-channel MOSFET as an ideal diode rectifier for low-loss reverse polarity protection with a 20-mV forward voltage drop. The wide supply input range of 3.2 V to 65 V allows control of popular DC bus voltages such as 12-V, 24-V, and 48-V automotive battery systems. The 3.2-V input voltage support is designed especially for severe cold crank requirements in automotive systems. The device can withstand and protect the loads from negative supply voltages down to –65 V.

The device controls the gate of the MOSFET to regulate the forward voltage drop at 20 mV. The regulation scheme enables graceful turn off of the MOSFET during a reverse current event and provides zero DC reverse current flow. Fast response (< 0.75 µs) to reverse current blocking makes the device applicable for systems with output voltage holdup requirements during ISO7637 pulse testing as well as power fail and input micro-short conditions. LM74703-Q1, LM74704-Q1 has FETGOOD output to indicate external MOSFET drain to source short or open condition. The device features enable pin (EN). With the enable pin low, the controller is off and draws approximately 1-µA of current.

The LM74703-Q1, LM74704-Q1 is an automotive AEC Q100 qualified ideal diode controller which operates in conjunction with an external N-channel MOSFET as an ideal diode rectifier for low-loss reverse polarity protection with a 20-mV forward voltage drop. The wide supply input range of 3.2 V to 65 V allows control of popular DC bus voltages such as 12-V, 24-V, and 48-V automotive battery systems. The 3.2-V input voltage support is designed especially for severe cold crank requirements in automotive systems. The device can withstand and protect the loads from negative supply voltages down to –65 V.

The device controls the gate of the MOSFET to regulate the forward voltage drop at 20 mV. The regulation scheme enables graceful turn off of the MOSFET during a reverse current event and provides zero DC reverse current flow. Fast response (< 0.75 µs) to reverse current blocking makes the device applicable for systems with output voltage holdup requirements during ISO7637 pulse testing as well as power fail and input micro-short conditions. LM74703-Q1, LM74704-Q1 has FETGOOD output to indicate external MOSFET drain to source short or open condition. The device features enable pin (EN). With the enable pin low, the controller is off and draws approximately 1-µA of current.
