ACTIVE
Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
GBW (typ) (MHz) |
100 |
BW at Acl (MHz) |
160 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
3000 |
Vn at flatband (typ) (nV√Hz) |
12 |
Vn at 1 kHz (typ) (nV√Hz) |
12 |
Iq per channel (typ) (mA) |
2.3 |
Vos (offset voltage at 25°C) (max) (mV) |
1.5 |
Rail-to-rail |
No |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
110 |
Input bias current (max) (pA) |
1500000 |
Offset drift (typ) (µV/°C) |
6 |
Iout (typ) (mA) |
85 |
2nd harmonic (dBc) |
50 |
3rd harmonic (dBc) |
50 |
Frequency of harmonic distortion measurement (MHz) |
5 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The LM6172 is a dual, high-speed voltage-feedback amplifier. The device is unity-gain stable and provides excellent dc and ac performance. With a 100MHz unity-gain bandwidth, 3000V/µs slew rate, and 50mA of output current per channel, the LM6172 offers high performance in dual amplifiers, yet only consumes 2.3mA of supply current per channel.

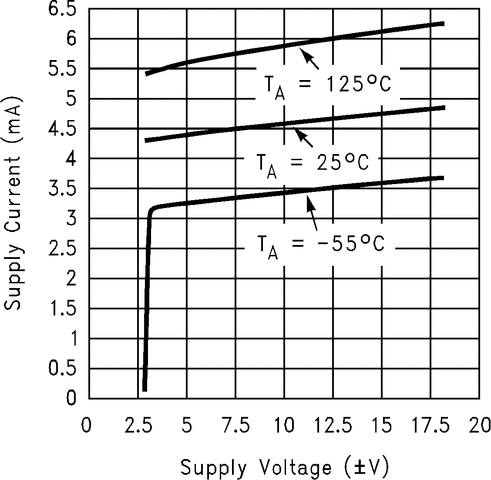

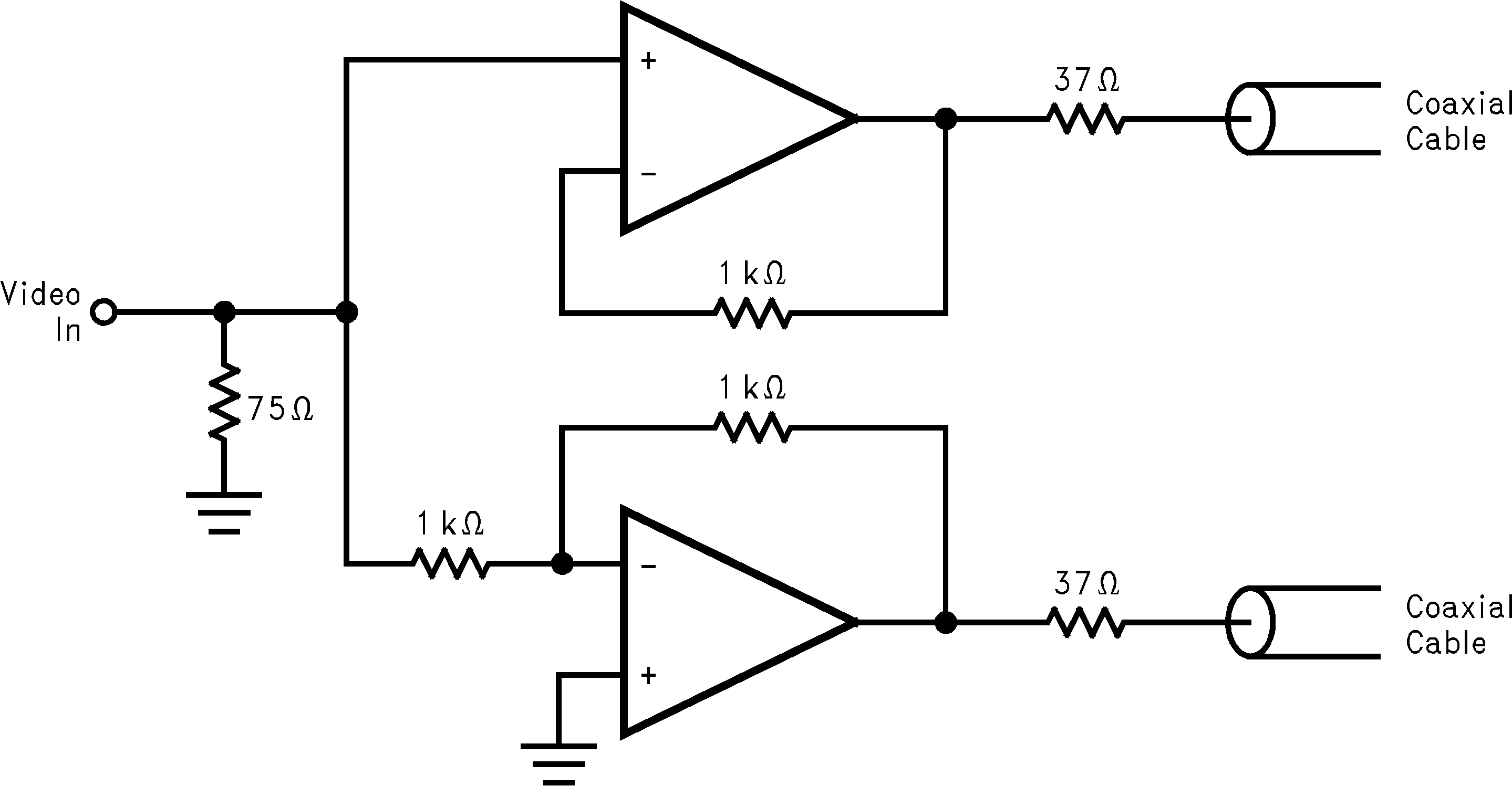

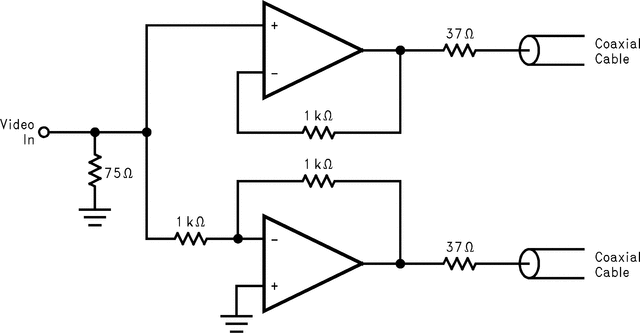

The LM6172 operates on ±15V power supplies for systems requiring large voltage swings, such as ADSL, scanners and ultrasound equipment. The device is also specified for ±5‑V power supplies for low-voltage applications, such as portable video systems.
The LM6172 is built with TIs advanced complementary bipolar process. See the LM6171 data sheet for a single amplifier with these same features.
