LM360
  • LM360
  • LM360

LM360

ACTIVE

High speed, low voltage comparator with differential output

Texas Instruments LM360 Product Info

1 April 2026 3

Parameters

Number of channels

1

Output type

Differential

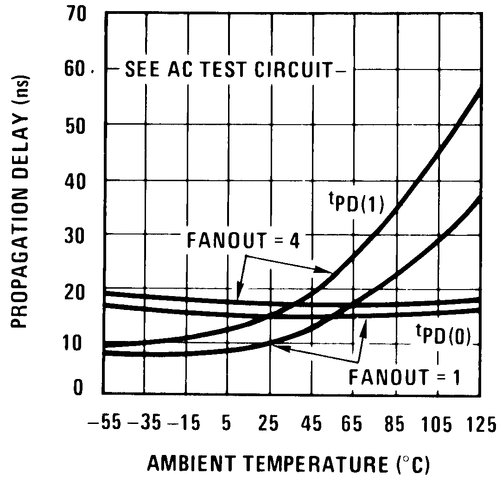

Propagation delay time (µs)

0.13

Vs (max) (V)

16

Vs (min) (V)

9

Rating

Catalog

Features

Strobe

Iq per channel (typ) (mA)

18

Vos (offset voltage at 25°C) (max) (mV)

2

Rail-to-rail

No

Operating temperature range (°C)

0 to 70

Input bias current (±) (max) (nA)

6000

VICR (max) (V)

13.5

VICR (min) (V)

2.5

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

  • Ensured high speed: 20 ns max
  • Tight delay matching on both outputs
  • Complementary TTL outputs
  • High input impedance
  • Low speed variation with overdrive variation
  • Fan-out of 4
  • Low input offset voltage
  • Series 74 TTL compatible

All trademarks are the property of their respective owners.

  • Ensured high speed: 20 ns max
  • Tight delay matching on both outputs
  • Complementary TTL outputs
  • High input impedance
  • Low speed variation with overdrive variation
  • Fan-out of 4
  • Low input offset voltage
  • Series 74 TTL compatible

All trademarks are the property of their respective owners.

Description

The LM160/LM360 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the μA760/μA760C, for which it is a pin-for-pin replacement. The device has been optimized for greater speed, input impedance and fan-out, and lower input offset voltage. Typically delay varies only 3 ns for overdrive variations of 5 mV to 400 mV.

Complementary outputs having minimum skew are provided. Applications involve high speed analog to digital convertors and zero-crossing detectors in disk file systems.
