ACTIVE
Number of channels |
4 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
0.7 |
Vs (max) (V) |
36 |
Vs (min) (V) |
2 |
Rating |
Military |
Iq per channel (typ) (mA) |
0.2 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Rail-to-rail |
In to V- |
Operating temperature range (°C) |
0 to 70 |
Input bias current (±) (max) (nA) |
250 |
VICR (max) (V) |
34 |
VICR (min) (V) |
0 |

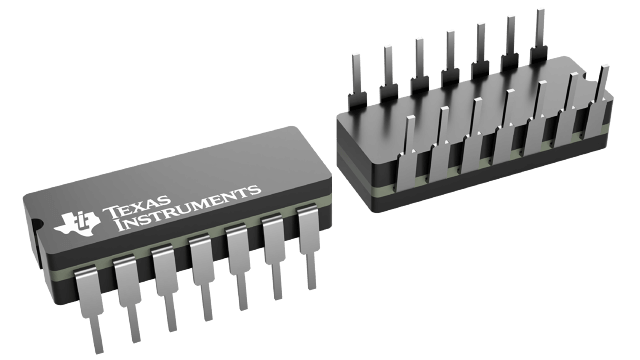

CDIP (J)-14-130.4652 mm² 19.56 x 6.67
The LM339-MIL device consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV maximum for all four comparators. These comparators were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though they are operated from a single power supply voltage.
The LM339-MIL device was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the device directly interfaces with MOS logic where the low-power drain of the LM339-MIL is a distinct advantage over standard comparators.
