Texas Instruments LM139-MIL Product Info

Parameters

Number of channels	4
Output type	Open-collector, Open-drain
Propagation delay time (µs)	1.3
Vs (max) (V)	36
Vs (min) (V)	2
Rating	Military
Iq per channel (typ) (mA)	0.2
Vos (offset voltage at 25°C) (max) (mV)	5
Rail-to-rail	In to V-
Operating temperature range (°C)	-55 to 125
Input bias current (±) (max) (nA)	25
VICR (max) (V)	34.5
VICR (min) (V)	0

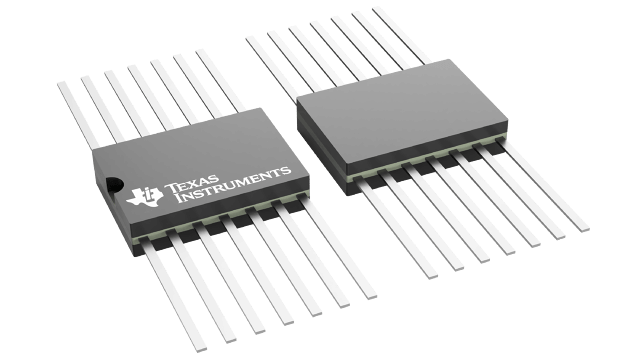

Package

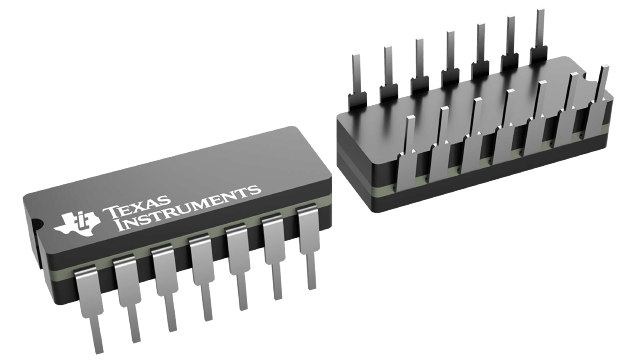

CDIP (J)-14-130.4652 mm² 19.56 x 6.67

Features

Wide Supply Ranges
- Single Supply: 2 V to 36 V
  (Tested to 30 V)
- Dual Supplies: ±1 V to ±18 V
  (Tested to ±15 V)
Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typical)
Low Input Bias Current: 25 nA (Typical)
Low Input Offset Current: 3 nA (Typical)
Low Input Offset Voltage: 2 mV (Typical)
Common-Mode Input Voltage Range
Includes Ground
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Wide Supply Ranges
- Single Supply: 2 V to 36 V
  (Tested to 30 V)
- Dual Supplies: ±1 V to ±18 V
  (Tested to ±15 V)
Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typical)
Low Input Bias Current: 25 nA (Typical)
Low Input Offset Current: 3 nA (Typical)
Low Input Offset Voltage: 2 mV (Typical)
Common-Mode Input Voltage Range
Includes Ground
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Description

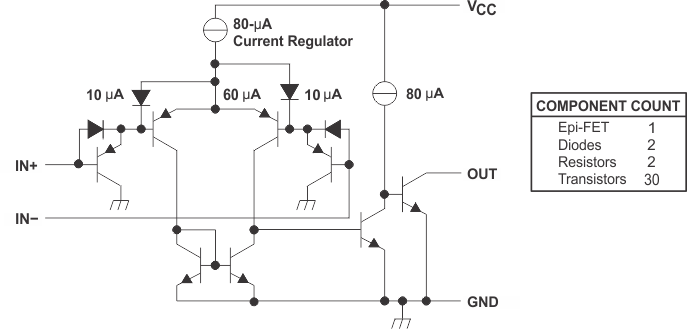

The LM139-MIL device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and V_CC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

The LM139-MIL device is characterized for operation over the full military temperature range of –55°C to +125°C.

The LM139-MIL device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and V_CC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

The LM139-MIL device is characterized for operation over the full military temperature range of –55°C to +125°C.
