ACTIVE
Rating |
Automotive |
Product type |
Analog transistor output |
Input type |
DC |
Output type |
Analog transistor |
Withstand isolation voltage (VISO) (Vrms) |
3750, 5000 |
Number of channels |
1 |
Current transfer ratio (CTR) (min) (%) |
375 |
Current transfer ratio (CTR) (max) (%) |
560 |
Forward voltage (typ) (V) |
1.2 |
Forward current (IF) (max) (mA) |
20 |
Forward current (IF) (min) (µA) |
700 |
Data rate (max) (Mbps) |
0.1 |
Operating temperature range (°C) |
-40 to 125 |
Turnon time (enable) (µs) |
0.44, 1.8 |
Turnoff time (disable) (µs) |
2.7, 13.5 |
Creepage (min) (mm) |
5, 8 |
Clearance (min) (mm) |
5, 8 |
SOIC (DFG)-4-24.57 mm² 3.51 x 7

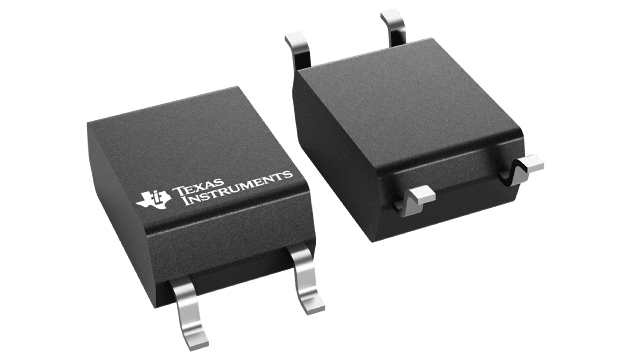

The ISOM811x-Q1 devices are single-channel optocoupler-emulators with LED-emulator input and transistor output. The devices are footprint compatible and pin-to-pin upgrades for many traditional optocouplers, allowing enhancement to existing systems with no PCB redesign.
ISOM811x-Q1 opto-emulators offer significant reliability and performance advantages compared to optocouplers, including high bandwidth, low turn-off delay, low power consumption, wider temperature ranges, flat CTR, and tight process controls resulting in small part-to-part skew. Since there is no aging effect or temperature variation to compensate for, the emulated LED input stage consumes less power than optocouplers.
ISOM811x-Q1 devices are offered in small SOIC-4 packages with 2.54mm and 1.27mm pin pitches, supporting 3750VRMS and 5000VRMS isolation ratings with DC (ISOM811[0-3]-Q1) and bidirectional DC (ISOM811[5-8]-Q1) input options. The high performance and reliability of ISOM811x-Q1 enables these devices to be used in power supply feedback design, motor drives, I/O modules in industrial controllers, factory automation applications, and more.
