ACTIVE
Number of channels |
2 |
Vrwm (V) |
12 |
Bi-/uni-directional |
Bi-directional |
Package name |
SOT-23-3 |
Peak pulse power (8/20 μs) (max) (W) |
75 |
IO capacitance (typ) (pF) |
1.5 |
IEC 61000-4-2 contact (±V) |
22000 |
IEC 61000-4-5 (A) |
3 |
Features |
ESD Protection |
Clamping voltage (V) |
20 |
Dynamic resistance (typ) |
0.45 |
Interface type |
BMS, General purpose, RS-485/432/422/232 |
Breakdown voltage (min) (V) |
14 |
IO leakage current (max) (nA) |
1000 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37
The ESD562 is a bidirectional ESD protection diode for RS-485 and RS-422 interface protection. The ESD562 is rated to dissipate ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±22kV Contact, ±30kV Air-gap). The device can clamp 8/20µs surges with peak pulse currents up to 3A in accordance with the IEC 61000-4-5 standard.
This device features a 1.5pF (typical) IO capacitance enabling high-speed interface protection. The low clamping voltage in the positive and negative direction help protect systems against transient events. This protection is key in industrial systems which require a high level of robustness and reliability.

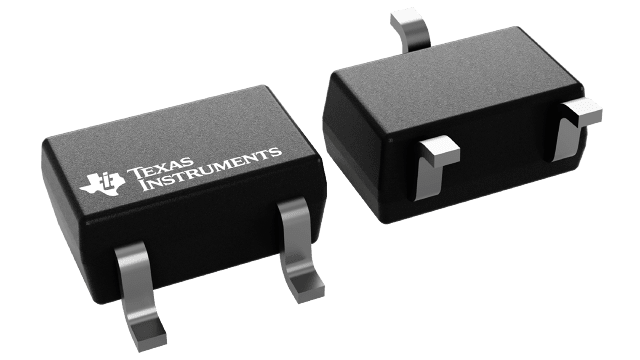

The ESD562 is available in a small leaded SOT-23 (DBZ) package.
