ESD351
  • ESD351
  • ESD351

ESD351

ACTIVE

1.8-pF, 3.3V, ±30-kV ESD protection diode with 6.5-V, 16-A TLP clamping in 0402 package for USB 2.0

Texas Instruments ESD351 Product Info

1 April 2026 5

Parameters

Number of channels

1

Vrwm (V)

3.6

Bi-/uni-directional

Uni-Directional

Package name

DFN1006

Peak pulse power (8/20 μs) (max) (W)

36

IO capacitance (typ) (pF)

1.8

IEC 61000-4-2 contact (±V)

30000

IEC 61000-4-5 (A)

6

Features

ESD Protection

Clamping voltage (V)

6.5

Dynamic resistance (typ)

0.1

Interface type

Audio, GPIO, USB 2.0

Breakdown voltage (min) (V)

4.5

IO leakage current (max) (nA)

10

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

X1SON (DPY)-2-0.6 mm² 1 x 0.6

Features

  • IEC 61000-4-2 Level 4 ESD Protection
    • ±30-kV Contact Discharge
    • ±30-kV Air Gap Discharge
  • IEC 61000-4-4 EFT Protection
    • 80 A (5/50 ns)
  • IEC 61000-4-5 Surge Protection
    • 6 A (8/20 µs)
  • IO Capacitance: 1.8 pF (Typical)
  • DC Breakdown Voltage: 4.5 V (Minimum)
  • Low Leakage Current: 0.1 nA (Typical)
  • Extremely Low ESD Clamping Voltage
    • 6.5 V at 16-A TLP (I/O Pin to GND)
    • RDYN: 0.1 Ω (I/O Pin to GND)
  • Industrial Temperature Range: –40°C to +125°C
  • Industry Standard 0402 Package (DFN1006P2)
  • IEC 61000-4-2 Level 4 ESD Protection
    • ±30-kV Contact Discharge
    • ±30-kV Air Gap Discharge
  • IEC 61000-4-4 EFT Protection
    • 80 A (5/50 ns)
  • IEC 61000-4-5 Surge Protection
    • 6 A (8/20 µs)
  • IO Capacitance: 1.8 pF (Typical)
  • DC Breakdown Voltage: 4.5 V (Minimum)
  • Low Leakage Current: 0.1 nA (Typical)
  • Extremely Low ESD Clamping Voltage
    • 6.5 V at 16-A TLP (I/O Pin to GND)
    • RDYN: 0.1 Ω (I/O Pin to GND)
  • Industrial Temperature Range: –40°C to +125°C
  • Industry Standard 0402 Package (DFN1006P2)

Description

The ESD351 is a uni-directional TVS ESD protection diode featuring low dynamic resistance RDYN and low clamping voltage. The ESD351 is rated to dissipate ESD strikes up to 30 kV (Contact and Air) level per the IEC 61000-4-2 standard. The ultra-low dynamic resistance (0.1 Ω) and extremely low clamping voltage (6.5 V at 16-A TLP) ensure system level protection against transient events. This device has a capacitance of 1.8 pF (typical) making it ideal for protecting interfaces such as USB 2.0.

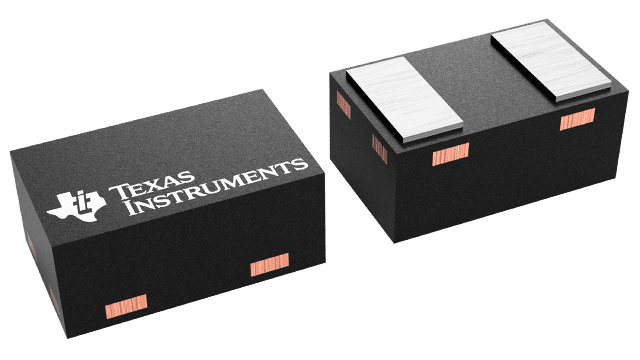

The ESD351 is offered in the industry standard 0402 (DPY/DFN1006P2) package.
