Texas Instruments ESD341 Product Info

Parameters

Number of channels	1
Vrwm (V)	3.6
Bi-/uni-directional	Bi-directional
Package name	DFN0603
Peak pulse power (8/20 μs) (max) (W)	54
IO capacitance (typ) (pF)	0.66
IEC 61000-4-2 contact (±V)	30000
IEC 61000-4-5 (A)	5.4
Clamping voltage (V)	8.8
Dynamic resistance (typ)	0.25
Interface type	Audio, Ethernet, GPIO, General purpose, HDMI 1.4, Memory/SIM Card, USB 2.0
Breakdown voltage (min) (V)	5
IO leakage current (max) (nA)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 125

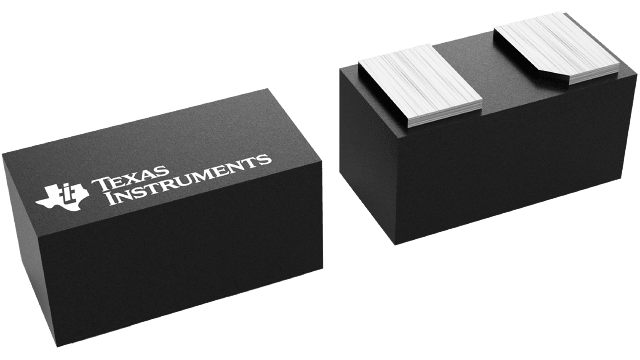

Package

X2SON (DPL)-2-0.18 mm² 0.6 x 0.3

Features

IEC 61000-4-2 level 4 ESD protection
- 30 kV contact discharge
- 30 kV air gap discharge
IEC 61000-4-5 surge protection
- 5.4 A (8/20 µs)
IO capacitance:
- 0.66 pF (typical)
DC breakdown voltage: ±6.2 V (typical)
Ultra low leakage current: 100 nA (maximum)
Low ESD clamping voltage: 10.2 V at 16 A TLP
Low insertion loss: 5 GHz (–3 dB bandwidth, DPL)
Supports high speed interfaces up to 3.4 Gbps
Industrial temperature range: –40°C to +125°C
Space-saving industry standard 0201 footprint (0.6 mm × 0.3 mm × 0.3 mm)

IEC 61000-4-2 level 4 ESD protection
- 30 kV contact discharge
- 30 kV air gap discharge
IEC 61000-4-5 surge protection
- 5.4 A (8/20 µs)
IO capacitance:
- 0.66 pF (typical)
DC breakdown voltage: ±6.2 V (typical)
Ultra low leakage current: 100 nA (maximum)
Low ESD clamping voltage: 10.2 V at 16 A TLP
Low insertion loss: 5 GHz (–3 dB bandwidth, DPL)
Supports high speed interfaces up to 3.4 Gbps
Industrial temperature range: –40°C to +125°C
Space-saving industry standard 0201 footprint (0.6 mm × 0.3 mm × 0.3 mm)

Description

The ESD341 is a bidirectional TVS ESD protection diode for HDMI 1.4 circuit protection. The ESD341 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.66 pF (typical) IO capacitance enabling high-speed interface protection up to 3.4 Gbps including support for protocols such as HDMI 1.4b. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

The 30 kV ESD rating and 5.4 A surge provides robust transient protection in a tiny package for protecting 3.6 V power rails in portable electronics and other space constrained applications such as wearables.

The ESD341 is offered in the industry standard 0201 (DPL) package.

The ESD341 is a bidirectional TVS ESD protection diode for HDMI 1.4 circuit protection. The ESD341 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.66 pF (typical) IO capacitance enabling high-speed interface protection up to 3.4 Gbps including support for protocols such as HDMI 1.4b. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

The 30 kV ESD rating and 5.4 A surge provides robust transient protection in a tiny package for protecting 3.6 V power rails in portable electronics and other space constrained applications such as wearables.

The ESD341 is offered in the industry standard 0201 (DPL) package.
