ESD1LIN24-Q1
  • ESD1LIN24-Q1
  • ESD1LIN24-Q1

ESD1LIN24-Q1

ACTIVE

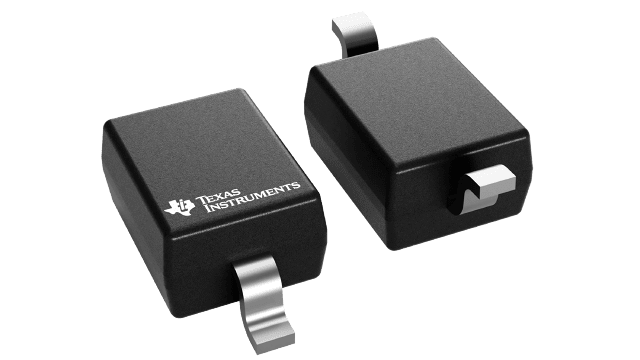

Automotive, 2.3-pF, ±24-V, ±30-kV ESD protection diode for LIN interfaces in SOD-32

Texas Instruments ESD1LIN24-Q1 Product Info

1 April 2026 2

Parameters

Number of channels

1

Vrwm (V)

24

Bi-/uni-directional

Bi-directional

Package name

SOD323

Peak pulse power (8/20 μs) (max) (W)

159

IO capacitance (typ) (pF)

2.3

IEC 61000-4-2 contact (±V)

30000

IEC 61000-4-5 (A)

4.4

Features

ESD Protection

Clamping voltage (V)

37

Dynamic resistance (typ)

0.5

Interface type

LIN

Breakdown voltage (min) (V)

25.5

IO leakage current (max) (nA)

50

Rating

Automotive

Operating temperature range (°C)

-55 to 150

Package

SOT (DYF)-2-3.445 mm² 2.65 x 1.3

Features

  • IEC 61000-4-2 level 4 ESD protection:
    • ±30kV, ±22kV or ±15kV contact discharge
    • ±30kV, ±22kV or ±15kV air-gap discharge
  • ISO 10605 (330pF, 330Ω) ESD protection:
    • ±25kV, ±20kV or ±12kV contact discharge
    • ±25kV, ±20kV or ±12kV air-gap discharge
  • 24V working voltage
  • Bidirectional ESD protection
  • Low clamping voltage protects downstream components
  • AEC-Q101 qualified
  • Temperature range: –55°C to +150°C
  • I/O capacitance = 2.3pF, 1.6pF, or 1.1pF (typical)
  • Offered in industry standard packages: SOD-323 (DYF), SOD-523 (DYA), and 0402 size leadless package (DPY)
  • Leaded packages used for automatic optical inspection (AOI)
  • IEC 61000-4-2 level 4 ESD protection:
    • ±30kV, ±22kV or ±15kV contact discharge
    • ±30kV, ±22kV or ±15kV air-gap discharge
  • ISO 10605 (330pF, 330Ω) ESD protection:
    • ±25kV, ±20kV or ±12kV contact discharge
    • ±25kV, ±20kV or ±12kV air-gap discharge
  • 24V working voltage
  • Bidirectional ESD protection
  • Low clamping voltage protects downstream components
  • AEC-Q101 qualified
  • Temperature range: –55°C to +150°C
  • I/O capacitance = 2.3pF, 1.6pF, or 1.1pF (typical)
  • Offered in industry standard packages: SOD-323 (DYF), SOD-523 (DYA), and 0402 size leadless package (DPY)
  • Leaded packages used for automatic optical inspection (AOI)

Description

The ESD1LIN24-Q1, ESD751-Q1, and ESD761-Q1 are single-channel low capacitance bidirectional ESD protection devices for local interconnect network (LIN). These devices are rated to dissipate contact ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±30kV Contact, ±30kV Airgap), (±22kV Contact, ±22kV Airgap), and (±15kV Contact, ±15kV Airgap), respectively. The low dynamic resistance and low clamping voltage help protect systems against transient events. This protection is key as automotive systems require a high level of robustness and reliability when they control safety devices.

The ESD1LIN24-Q1 and ESD751-Q1 are both offered in leaded packages for easy flow through routing.
