Texas Instruments DS90UR903Q-Q1 Product Info

Parameters

Applications	In-vehicle Infotainment (IVI)
Input compatibility	LVCMOS
Function	Serializer
Output compatibility	FPD-Link LVDS
Color depth (bpp)	18
Features	I2C Config
EMI reduction	BIST
Diagnostics	I2C Bus
Rating	Automotive
Operating temperature range (°C)	-40 to 105

Package

WQFN (RTA)-40-36 mm² 6 x 6

Features

10 MHz to 43 MHz Input PCLK Support
210 Mbps to 903 Mbps Data Throughput
Single Differential Pair Interconnect
Embedded Clock with DC Balanced Coding to
Support AC-coupled Interconnects
Capable to Drive up to 10 meters Shielded
Twisted-Pair
I²C Compatible Serial Interface
for Device Configuration
Single Hardware Device Addressing Pin
LOCK Output Reporting Pin to Validate Link
Integrity
Integrated Termination Resistors
1.8V- or 3.3V-compatible Parallel Bus Interface
Single Power Supply at 1.8V
ISO 10605 ESD and IEC 61000-4-2 ESD Compliant
Automotive Grade Product: AEC-Q100 Grade 2 Qualified
Temperature Range −40°C to +105°C
No Reference Clock Required on Deserializer
Programmable Receive Equalization
EMI/EMC Mitigation
- DES Programmable Spread Spectrum (SSCG) outputs
- DES Receiver Staggered Outputs

10 MHz to 43 MHz Input PCLK Support
210 Mbps to 903 Mbps Data Throughput
Single Differential Pair Interconnect
Embedded Clock with DC Balanced Coding to
Support AC-coupled Interconnects
Capable to Drive up to 10 meters Shielded
Twisted-Pair
I²C Compatible Serial Interface
for Device Configuration
Single Hardware Device Addressing Pin
LOCK Output Reporting Pin to Validate Link
Integrity
Integrated Termination Resistors
1.8V- or 3.3V-compatible Parallel Bus Interface
Single Power Supply at 1.8V
ISO 10605 ESD and IEC 61000-4-2 ESD Compliant
Automotive Grade Product: AEC-Q100 Grade 2 Qualified
Temperature Range −40°C to +105°C
No Reference Clock Required on Deserializer
Programmable Receive Equalization
EMI/EMC Mitigation
- DES Programmable Spread Spectrum (SSCG) outputs
- DES Receiver Staggered Outputs

Description

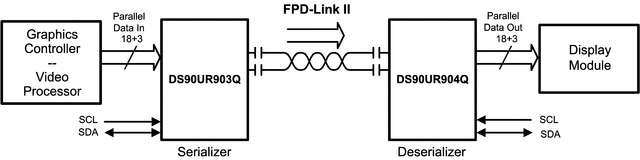

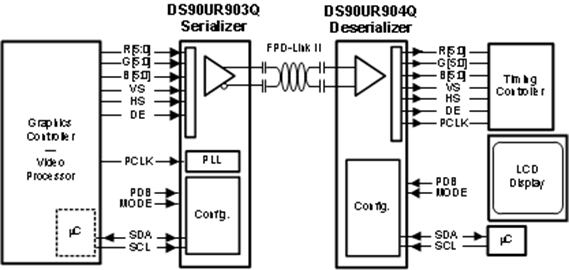

The DS90UR903Q/DS90UR904Q chipset offers a FPD-Link II interface with a high-speed forward channel for data transmission over a single differential pair. The Serializer/ Deserializer pair is targeted for direct connections between graphics host controller and displays modules. This chipset is ideally suited for driving video data to displays requiring 18-bit color depth (RGB666 + HS, VS, and DE). The serializer converts 21 bit data over a single high-speed serial stream. This single serial stream simplifies transferring a wide data bus over PCB traces and cable by eliminating the skew problems between parallel data and clock paths. This significantly saves system cost by narrowing data paths that in turn reduce PCB layers, cable width, and connector size and pins.

The Deserializer inputs provide equalization control to compensate for loss from the media over longer distances. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects.

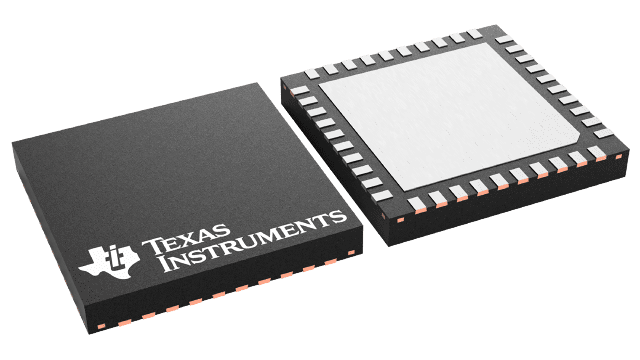

The Serializer is offered in a 40-pin WQFN package and the Deserializer is offered in a 48-pin WQFN package.
