DLPA2000
  • DLPA2000

DLPA2000

ACTIVE

DLP® PMIC/LED driver for DLP2010 (0.2 WVGA) DMD

Texas Instruments DLPA2000 Product Info

1 April 2026 0

Parameters

Component type

PMIC/LED Driver

Chipset family

DLP2010, DLP2010NIR, DLP230GP, DLP230KP, DLP230NP, DLP3010, DLP650LE, DLPA2000, DLPC3430, DLPC3433, DLPC3435, DLPC3438

Operating temperature range (°C)

-10 to 85

Rating

Catalog

Package

DSBGA (YFF)-56-10.7999999999999988 mm² 3 x 3.5999999999999996

Features

  • High Efficiency RGB LED/Lamp Driver with Buck-Boost DC-to-DC Converter, DMD Supplies, DPP Core Supply, 1.8-V Load Switch, and Measurement System in a Small Chip-Scale Package
  • Three Low-Impedance (30 mΩ Typical at 27°C) MOSFET Switches for Channel Selection
  • Independent, 10-Bit Current Control per Channel
  • 750-mA Max LED Current for DLPA2000 Embedded Applications
  • On-Chip Motor Driver
  • DMD Regulators
    • Requires Only a Single Inductor
    • VOFS: 10 V
    • VBIAS: 18 V
    • VRST: –14 V
    • Passive Discharge to GND When Disabled
  • DPP 1.1-V Core Supply
    • Synchronous Step-Down Converter with Integrated Switching FETs
    • Supports up to 600-mA Output Current
  • VLED Buck Boost Converter
    • Power Save Mode at Light Load Current
  • Low-Impedance Load Switch
    • VIN Range from 1.8 V to 3.6 V
    • Supports up to 200 mA of Current
    • Passive Discharge to GND When Disabled
  • DMD Reset Signal Generation and Power Supply Sequencing
  • 33-MHz Serial Peripheral Interface (SPI)
  • Multiplexer for Measuring Analog Signals
    • Battery Voltage
    • LED Voltage, LED Current
    • Light Sensor (for White Point Correction)
    • Internal Reference Voltage
    • External (Thermistor) Temperature Sensor
  • Monitoring and Protection Circuits
    • Hot Die Warning and Thermal
    • Low-Battery Warning
    • Programmable Battery Undervoltage Lockout (UVLO)
    • Load Switch UVLO
    • Overcurrent and Undervoltage Protection

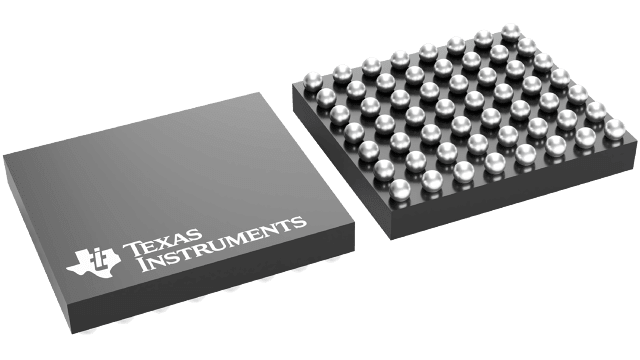

  • DLPA2000 DSBGA Package
    • 56-Ball 0.4-mm Pitch
    • Die Size: 3.280 mm × 3.484 mm ± 0.03 mm
  • High Efficiency RGB LED/Lamp Driver with Buck-Boost DC-to-DC Converter, DMD Supplies, DPP Core Supply, 1.8-V Load Switch, and Measurement System in a Small Chip-Scale Package
  • Three Low-Impedance (30 mΩ Typical at 27°C) MOSFET Switches for Channel Selection
  • Independent, 10-Bit Current Control per Channel
  • 750-mA Max LED Current for DLPA2000 Embedded Applications
  • On-Chip Motor Driver
  • DMD Regulators
    • Requires Only a Single Inductor
    • VOFS: 10 V
    • VBIAS: 18 V
    • VRST: –14 V
    • Passive Discharge to GND When Disabled
  • DPP 1.1-V Core Supply
    • Synchronous Step-Down Converter with Integrated Switching FETs
    • Supports up to 600-mA Output Current
  • VLED Buck Boost Converter
    • Power Save Mode at Light Load Current
  • Low-Impedance Load Switch
    • VIN Range from 1.8 V to 3.6 V
    • Supports up to 200 mA of Current
    • Passive Discharge to GND When Disabled
  • DMD Reset Signal Generation and Power Supply Sequencing
  • 33-MHz Serial Peripheral Interface (SPI)
  • Multiplexer for Measuring Analog Signals
    • Battery Voltage
    • LED Voltage, LED Current
    • Light Sensor (for White Point Correction)
    • Internal Reference Voltage
    • External (Thermistor) Temperature Sensor
  • Monitoring and Protection Circuits
    • Hot Die Warning and Thermal
    • Low-Battery Warning
    • Programmable Battery Undervoltage Lockout (UVLO)
    • Load Switch UVLO
    • Overcurrent and Undervoltage Protection
  • DLPA2000 DSBGA Package
    • 56-Ball 0.4-mm Pitch
    • Die Size: 3.280 mm × 3.484 mm ± 0.03 mm

Description

The DLPA2000 is a dedicated PMIC/RGB LED/lamp driver for the DLP2010 and DLP2010NIR digital micromirror devices (DMD) when used with a DLPC3430, DLPC3435, or DLPC150 digital controller. For reliable operation of these chipsets, it is mandatory to use the DLPA2000.

The DLPA2000 is a dedicated PMIC/RGB LED/lamp driver for the DLP2010 and DLP2010NIR digital micromirror devices (DMD) when used with a DLPC3430, DLPC3435, or DLPC150 digital controller. For reliable operation of these chipsets, it is mandatory to use the DLPA2000.
