DLP472TE
  • DLP472TE

DLP472TE

ACTIVE

0.47in, 4K UHD HSSI DLP® digital micromirror device (DMD)

Texas Instruments DLP472TE Product Info

1 April 2026 3

Parameters

Display resolution (max)

4K UHD (3840x2160)

System brightness (max) (lm)

7000

Array diagonal (in)

0.47

Chipset family

DLPA100, DLPC7540

Input frame rate (max) (Hz)

60

Micromirror array size

1920x1080

Micromirror pitch (m)

0.0000054

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

DLP-S453 (FYW)-149-718.06 mm² 32.2 x 22.3

Features

  • 0.47-inch diagonal micromirror array
    • 4K UHD (3840 × 2160) display resolution
    • 5.4µm micromirror pitch
    • ±14.5° micromirror tilt (relative to a flat surface)
    • Corner illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports 4K UHD at 60Hz and full HD at 240Hz
  • Laser-phosphor, LED, RGB laser, and lamp operation supported by DLPC7540 display controller, DLPA100 power management, and motor driver IC
  • 0.47-inch diagonal micromirror array
    • 4K UHD (3840 × 2160) display resolution
    • 5.4µm micromirror pitch
    • ±14.5° micromirror tilt (relative to a flat surface)
    • Corner illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports 4K UHD at 60Hz and full HD at 240Hz
  • Laser-phosphor, LED, RGB laser, and lamp operation supported by DLPC7540 display controller, DLPA100 power management, and motor driver IC

Description

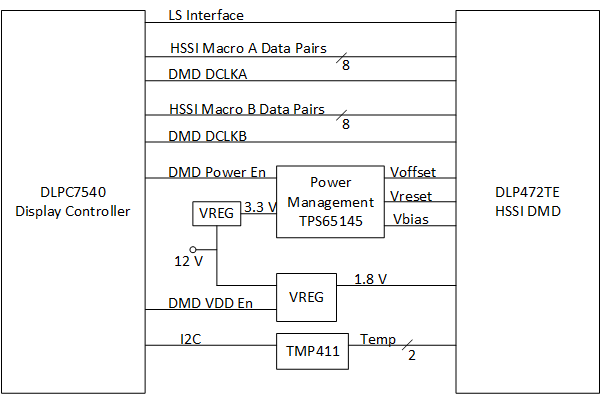

The DLP472TE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K UHD display systems. The TI DLP Products 0.47” 4K UHD chipset is composed of the DMD, DLPC7540 display controller, and DLPA100 Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 4K UHD displays.

The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit the DLP® Products third-party search tools to find approved optical module manufacturers and third party providers.

Visit the Getting Started with TI DLP display technology page to learn more about how to start designing with the DMD.
