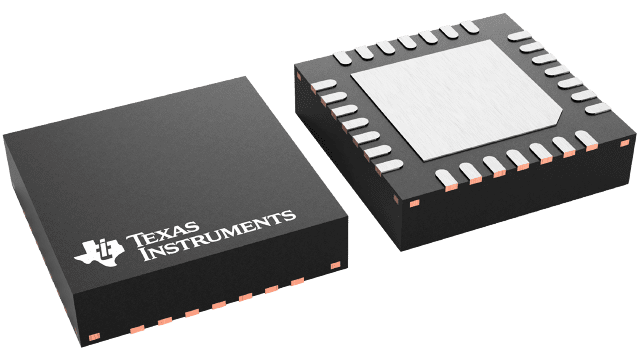

DAC60516

ACTIVE

16-channel, 12-bit voltage output with internal 2.5V reference and 50 mA drive capability

Texas Instruments DAC60516 Product Info

1 April 2026 3

Parameters

Resolution (Bits)

12

Number of DAC channels

16

Interface type

I2C, SPI

Output type

Buffered Voltage

Output voltage range (V)

0 to 5

INL (max) (±LSB)

1

Settling time (µs)

6

Reference type

Ext, Int

Architecture

R-2R

Rating

Catalog

Features

Small Size

Operating temperature range (°C)

to

Product type

Precision DAC

Package

WQFN (RUY)-28-16 mm² 4 x 4

Features

  • Performance:
    • INL: ±1LSB maximum at 12-bit resolution
    • TUE: ±0.15% of FSR maximum
  • Integrated 2.5V precision internal reference
    • Initial accuracy: ±2.5mV maximum
    • Drift: 15ppm/°C typical
  • High drive capability: 50mA with 0.5V from supply rails
  • Flexible configuration options
    • User selectable gain: 2 ×, 1 ×
    • Reset to zero scale
    • Clear output function
  • Wide operating range:
    • Power supply: 2.7V to 5.5V
    • Temperature range: –40°C to +125°C
  • SPI and I2C interfaces: 1.7V to 5.5V operation
    • SPI: 4-wire interface
    • I2C: Four target addresses
  • Small package:
    • 4mm × 4mm, 28-pin WQFN
  • Performance:
    • INL: ±1LSB maximum at 12-bit resolution
    • TUE: ±0.15% of FSR maximum
  • Integrated 2.5V precision internal reference
    • Initial accuracy: ±2.5mV maximum
    • Drift: 15ppm/°C typical
  • High drive capability: 50mA with 0.5V from supply rails
  • Flexible configuration options
    • User selectable gain: 2 ×, 1 ×
    • Reset to zero scale
    • Clear output function
  • Wide operating range:
    • Power supply: 2.7V to 5.5V
    • Temperature range: –40°C to +125°C
  • SPI and I2C interfaces: 1.7V to 5.5V operation
    • SPI: 4-wire interface
    • I2C: Four target addresses
  • Small package:
    • 4mm × 4mm, 28-pin WQFN

Description

The 12-bit DAC60516 is a low-power, 16-channel, buffered voltage-output digital-to-analog converter (DAC). The DAC60516 includes a 2.5V, 15ppm/°C internal reference, eliminating the need for an external precision reference in most applications. A user selectable gain configuration can be used to provide full-scale output voltages of 2.5V or 5V. The DAC60516 operates from a single power supply.

Communication to the DAC60516 is performed through an SPI- and I2C-supported serial interface, operating at clock rates of up to 50MHz (during SPI writes to the device). The VIO pin enables serial interface operation from 1.7V to 5.5V. The DAC60516 flexible interface enables operation with a wide range of industry-standard microprocessors and microcontrollers.

The DAC60516 is characterized for operation over the temperature range of –40°C to +125°C and available in a small WQFN package.
