Texas Instruments DAC60501 Product Info

Parameters

Resolution (Bits)	12
Number of DAC channels	1
Interface type	I2C, SPI
Output type	Buffered Voltage
Output voltage range (V)	0 to 5.5
INL (max) (±LSB)	1
Settling time (µs)	5
Reference type	Ext, Int
Architecture	R-2R
Rating	Catalog
Features	Reset to Mid-Scale, Small Size
Power consumption (typ) (mW)	1.8
Operating temperature range (°C)	-40 to 125
Product type	General-purpose DAC

Package

VSSOP (DGS)-10-14.7 mm² 3 x 4.9

Features

16-bit performance: 1-LSB INL and DNL (max)
Low glitch energy: 4 nV–s
Wide power supply: 2.7 V to 5.5 V
Buffered output range: 5 V, 2.5 V, or 1.25 V
Very-low power: 1 mA at 5.5 V
Integrated 5-ppm/°C (max), 2.5-V precision reference
Pin-selectable serial interface:
- 3-wire, SPI compatible up to 50-MHz
- 2-wire, I 2C compatible
Power-on-reset: Zero scale or midscale
1.62-V VIH with VDD = 5.5 V
Temperature range: –40°C to +125°C
Packages: Small 8-pin WSON and 10-pin VSSOP

16-bit performance: 1-LSB INL and DNL (max)
Low glitch energy: 4 nV–s
Wide power supply: 2.7 V to 5.5 V
Buffered output range: 5 V, 2.5 V, or 1.25 V
Very-low power: 1 mA at 5.5 V
Integrated 5-ppm/°C (max), 2.5-V precision reference
Pin-selectable serial interface:
- 3-wire, SPI compatible up to 50-MHz
- 2-wire, I 2C compatible
Power-on-reset: Zero scale or midscale
1.62-V VIH with VDD = 5.5 V
Temperature range: –40°C to +125°C
Packages: Small 8-pin WSON and 10-pin VSSOP

Description

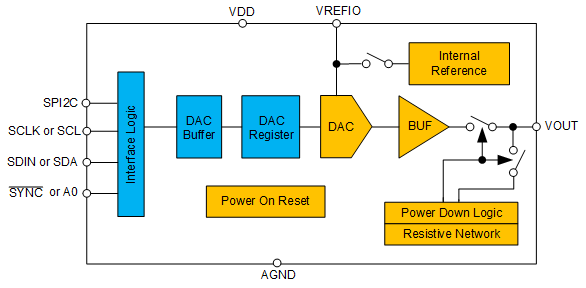

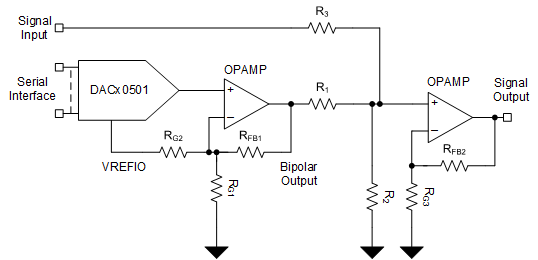

The 16-bit DAC80501, 14-bit DAC70501, and 12-bit DAC60501 (DACx0501) digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage-output. The DACx0501 are specified monotonic by design, and offer linearity of < 1 LSB. These devices include a 2.5-V, 5-ppm/°C internal reference, giving full-scale output voltage ranges of 1.25 V, 2.5 V, or 5 V. The DACx0501 incorporate a power-on-reset (POR) circuit that makes sure the DAC output powers up at zero scale or midscale, and remains at that scale until a valid code is written to the device. These devices consume a low current of 1 mA, and include a power-down feature that reduces current consumption to typically 15 µA at 5 V.

The digital interface of the DACx0501 can be configured to SPI or I 2C mode using the SPI2C pin. In SPI mode, the DACx0501 use a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz. In I 2C mode, the DACx0501 operate in standard mode (100Kbps), fast mode (400Kbps), and fast mode plus (1.0Mbps).

The 16-bit DAC80501, 14-bit DAC70501, and 12-bit DAC60501 (DACx0501) digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage-output. The DACx0501 are specified monotonic by design, and offer linearity of < 1 LSB. These devices include a 2.5-V, 5-ppm/°C internal reference, giving full-scale output voltage ranges of 1.25 V, 2.5 V, or 5 V. The DACx0501 incorporate a power-on-reset (POR) circuit that makes sure the DAC output powers up at zero scale or midscale, and remains at that scale until a valid code is written to the device. These devices consume a low current of 1 mA, and include a power-down feature that reduces current consumption to typically 15 µA at 5 V.

The digital interface of the DACx0501 can be configured to SPI or I 2C mode using the SPI2C pin. In SPI mode, the DACx0501 use a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz. In I 2C mode, the DACx0501 operate in standard mode (100Kbps), fast mode (400Kbps), and fast mode plus (1.0Mbps).
