ACTIVE
Device type |
Voltage sensing |
Output type |
Differential |
Peak-to-peak input voltage range (V) |
1 |
Isolation rating |
Reinforced |
Withstand isolation voltage (VISO) (Vrms) |
4250 |
Working isolation voltage (VIOWM) (Vrms) |
1200 |
Transient isolation voltage (VIOTM) (VPK) |
6000 |
CMTI (min) (kV/µs) |
75 |
Creepage (min) (mm) |
8 |
Clearance (min) (mm) |
8 |
Input offset (±) (max) (V) |
0.0002 |
Input offset drift (±) (typ) (µV/°C) |
5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

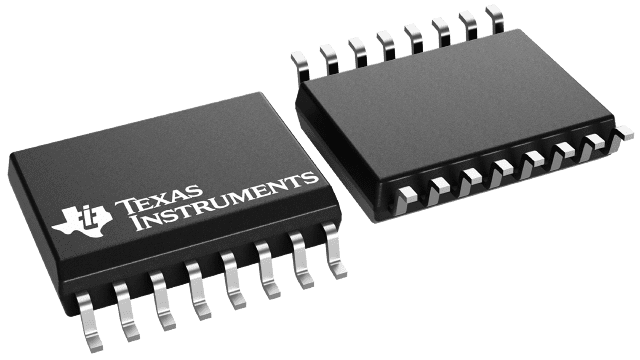

SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3
The AMC3330 is a precision, isolated amplifier with a fully integrated, isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is certified according to DIN EN IEC 60747-17 (VDE 0884-17) and UL1577 and separates sections of the system that operate on different common-mode voltage levels and protects low-voltage domains from damage.
The input of the AMC3330 is optimized for direct connection to high-impedance, voltage-signal sources such as a resistor-divider network to sense high-voltage signals. The integrated isolated DC/DC converter allows measurement of non-ground-referenced signals and makes the device a unique solution for noisy, space-constrained applications.
The excellent performance of the device supports accurate voltage monitoring and control. The integrated DC/DC converter fault-detection and diagnostic output pin of the AMC3330 simplify system-level design and diagnostics.
The AMC3330 is specified over the temperature range of –40°C to +125°C.
