AMC1210
  • AMC1210
  • AMC1210

AMC1210

ACTIVE

4-channel digital filter for delta-sigma modulators

Texas Instruments AMC1210 Product Info

1 April 2026 1

Parameters

Interface type

Parallel, Serial SPI

Sample rate (max) (Msps)

0.04

Rating

Catalog

Number of input channels

4

Architecture

Special

Operating temperature range (°C)

-40 to 125

Power consumption (typ) (mW)

24.5

Package

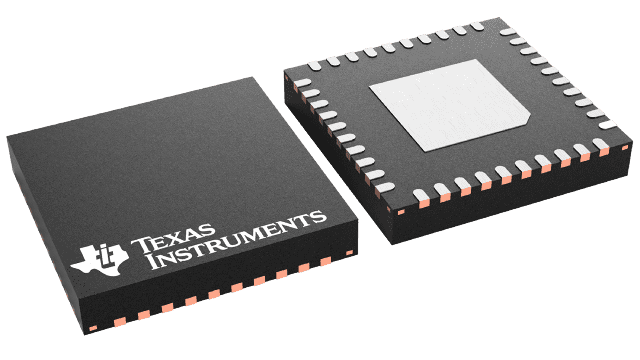

VQFN (RHA)-40-36 mm² 6 x 6

Features

  • Four Independently-Programmable Digital Filters
  • Four Window Comparators
  • Three Parallel and One Serial Interface
  • Comprehensive Interrupt System
  • Programmable Input Configuration
  • Carrier Frequency Generator for Resolver Applications
  • APPLICATIONS
    • Current Measurement
    • Resolver Decoding

All trademarks are the property of their respective owners.

  • Four Independently-Programmable Digital Filters
  • Four Window Comparators
  • Three Parallel and One Serial Interface
  • Comprehensive Interrupt System
  • Programmable Input Configuration
  • Carrier Frequency Generator for Resolver Applications
  • APPLICATIONS
    • Current Measurement
    • Resolver Decoding

All trademarks are the property of their respective owners.

Description

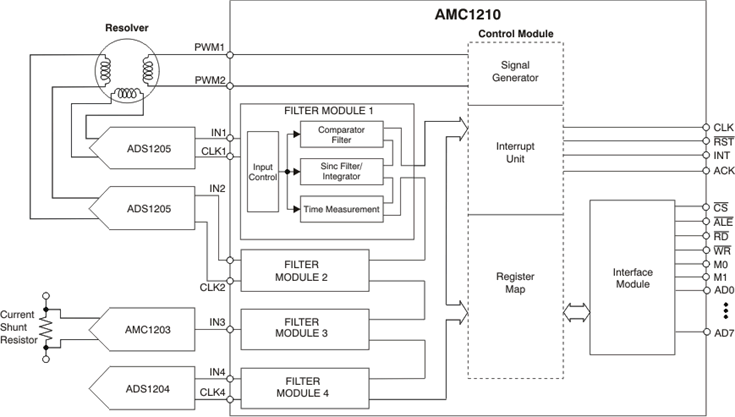

The AMC1210 is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each input can receive an independent delta-sigma () modulator bit stream. The bit streams are processed by four individually-programmable digital decimation filters. The AMC1210 also offers a flexible interface and a comprehensive interrupt unit, allowing customized digital functionality and immediate digital threshold comparisons for over-current monitoring.

The AMC1210 is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each input can receive an independent delta-sigma () modulator bit stream. The bit streams are processed by four individually-programmable digital decimation filters. The AMC1210 also offers a flexible interface and a comprehensive interrupt unit, allowing customized digital functionality and immediate digital threshold comparisons for over-current monitoring.
