ACTIVE
Resolution (Bits) |
12 |
Sample rate (max) (ksps) |
2000 |
Number of input channels |
6 |
Interface type |
Parallel |
Architecture |
SAR |
Input type |
Differential, Pseudo-Differential |
Multichannel configuration |
Multiplexed |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
30 |
Analog supply voltage (min) (V) |
2.7 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
71.7 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.5 |
TQFP (PBS)-32-49 mm² 7 x 7

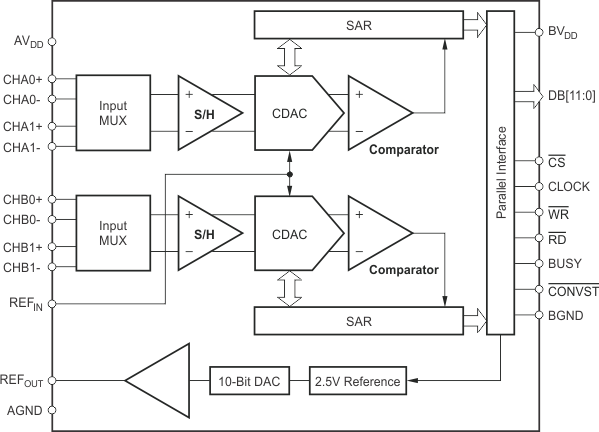

The ADS7865 is a dual, 12-bit, 2MSPS analog-to-digital converter (ADC) with four fully differential or six pseudo-differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold (S/H) amplifiers are fully differential and are maintained differentially to the input of the ADC. This architecture provides excellent common-mode rejection of 72dB at 100kHz, which is a critical performance characteristic in noisy environments.
The ADS7865 is pin-compatible with the ADS7862, but offers additional features such as a programmable channel sequencer and reference output, flexible supply voltage (2.7V to 5.5V for AVDD and BVDD), a pseudo-differential input multiplexer with three channels per ADC, and several power-down features.
The ADS7865 is offered in a TQFP-32 package. It is specified over the extended operating temperature range of –40°C to +125°C.
