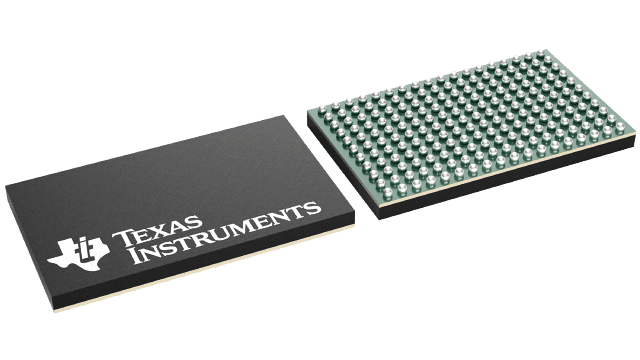

ADS52J90
  • ADS52J90

ADS52J90

ACTIVE

14-bit multichannel low-power high-speed analog-to-digital converter (ADC)

Texas Instruments ADS52J90 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

65

Resolution (Bits)

10, 12, 14

Number of input channels

8, 16, 32

Interface type

JESD204B, Serial LVDS

Analog input BW (MHz)

70

Features

Low Power

Rating

Catalog

Peak-to-peak input voltage range (V)

2

Power consumption (typ) (mW)

656

Architecture

SAR

SNR (dB)

73.5

SFDR (dB)

91.8

Operating temperature range (°C)

-40 to 85

Input buffer

No

Package

NFBGA (ZZE)-198-135 mm² 9 x 15

Features

  • 16-Channel ADC Configurable to Convert
    8, 16, or 32 Inputs
  • 10-, 12-, and 14-Bit Resolution Modes
  • Maximum ADC Conversion Rate:
    • 100 MSPS in 10-Bit Mode
    • 80 MSPS in 12-Bit Mode
    • 65 MSPS in 14-Bit Mode
  • 16 ADCs Configurable to Convert:
    • 8 Inputs with a Sampling Rate of a
      2X ADC Conversion Rate
    • 16 Inputs with a Sampling Rate of a
      1X ADC Conversion Rate
    • 32 Inputs with a Sampling Rate of a
      0.5X ADC Conversion Rate
  • LVDS Outputs with 16X, 14X, 12X, and 10X Serialization
  • 5-Gbps JESD Interface:
    • Supported in 16-Input and 32-Input Modes
    • JESD204B Subclass 0, 1, and 2
    • 2, 4, or 8 Channels per JESD Lane
  • Optional Digital I-Q Demodulator (1)
  • Supplies: 1.2 V, 1.8 V
  • 2-VPP Differential Input, 0.8-V Common-Mode
  • Differential or Single-Ended Input Clock
  • Signal-to-Noise Ratio (SNR):
    • 61 dBFS in 10-Bit Mode
    • 70 dBFS in 12-Bit Mode
    • 73.5 dBFS in 14-Bit Mode
  • Power at 100 MSPS: 41 mW/Channel
  • Package: NFBGA-198 (9 mm × 15 mm)
  • Pb-Free (RoHS Compliant) and Green

(1)Not detailed in this document. For details and information, contact factory.

  • 16-Channel ADC Configurable to Convert
    8, 16, or 32 Inputs
  • 10-, 12-, and 14-Bit Resolution Modes
  • Maximum ADC Conversion Rate:
    • 100 MSPS in 10-Bit Mode
    • 80 MSPS in 12-Bit Mode
    • 65 MSPS in 14-Bit Mode
  • 16 ADCs Configurable to Convert:
    • 8 Inputs with a Sampling Rate of a
      2X ADC Conversion Rate
    • 16 Inputs with a Sampling Rate of a
      1X ADC Conversion Rate
    • 32 Inputs with a Sampling Rate of a
      0.5X ADC Conversion Rate
  • LVDS Outputs with 16X, 14X, 12X, and 10X Serialization
  • 5-Gbps JESD Interface:
    • Supported in 16-Input and 32-Input Modes
    • JESD204B Subclass 0, 1, and 2
    • 2, 4, or 8 Channels per JESD Lane
  • Optional Digital I-Q Demodulator (1)
  • Supplies: 1.2 V, 1.8 V
  • 2-VPP Differential Input, 0.8-V Common-Mode
  • Differential or Single-Ended Input Clock
  • Signal-to-Noise Ratio (SNR):
    • 61 dBFS in 10-Bit Mode
    • 70 dBFS in 12-Bit Mode
    • 73.5 dBFS in 14-Bit Mode
  • Power at 100 MSPS: 41 mW/Channel
  • Package: NFBGA-198 (9 mm × 15 mm)
  • Pb-Free (RoHS Compliant) and Green

(1)Not detailed in this document. For details and information, contact factory.

Description

The ADS52J90 is a low-power, high-performance, 16-channel, analog-to-digital converter (ADC). The conversion rate of each ADC goes up to a maximum of 100 MSPS in 10-bit mode. The maximum conversion rate reduces when the ADC resolution is set to a higher value.

The device can be configured to accept 8, 16, or 32 inputs. In 32-input mode, each ADC alternately samples and converts two different inputs each at an effective sampling rate that is half of the ADC conversion rate. In 8-bit input mode, two ADCs convert the same input in an interleaved manner, resulting in an effective sampling rate that is twice the ADC conversion rate. The ADC is designed to scale its power with the conversion rate.

The ADC outputs are serialized and output through a low-voltage differential signaling (LVDS) interface along with a frame clock and a high-speed bit clock

The device also has an optional JESD204B interface while operating in the 16-input and 32-input modes. This interface runs up to 5 Gbps.

The ADS52J90 is available in a 9-mm × 15-mm, 0.8-mm pitch, NFBGA-198 package and is specified over a temperature range of –40°C to +85°C.

The ADS52J90 is a low-power, high-performance, 16-channel, analog-to-digital converter (ADC). The conversion rate of each ADC goes up to a maximum of 100 MSPS in 10-bit mode. The maximum conversion rate reduces when the ADC resolution is set to a higher value.

The device can be configured to accept 8, 16, or 32 inputs. In 32-input mode, each ADC alternately samples and converts two different inputs each at an effective sampling rate that is half of the ADC conversion rate. In 8-bit input mode, two ADCs convert the same input in an interleaved manner, resulting in an effective sampling rate that is twice the ADC conversion rate. The ADC is designed to scale its power with the conversion rate.

The ADC outputs are serialized and output through a low-voltage differential signaling (LVDS) interface along with a frame clock and a high-speed bit clock

The device also has an optional JESD204B interface while operating in the 16-input and 32-input modes. This interface runs up to 5 Gbps.

The ADS52J90 is available in a 9-mm × 15-mm, 0.8-mm pitch, NFBGA-198 package and is specified over a temperature range of –40°C to +85°C.
